Summit's shallow-depth series of built-in undercounter refrigeration brings full functionality to kitchen islands, wet bars, and other settings with space limitations.

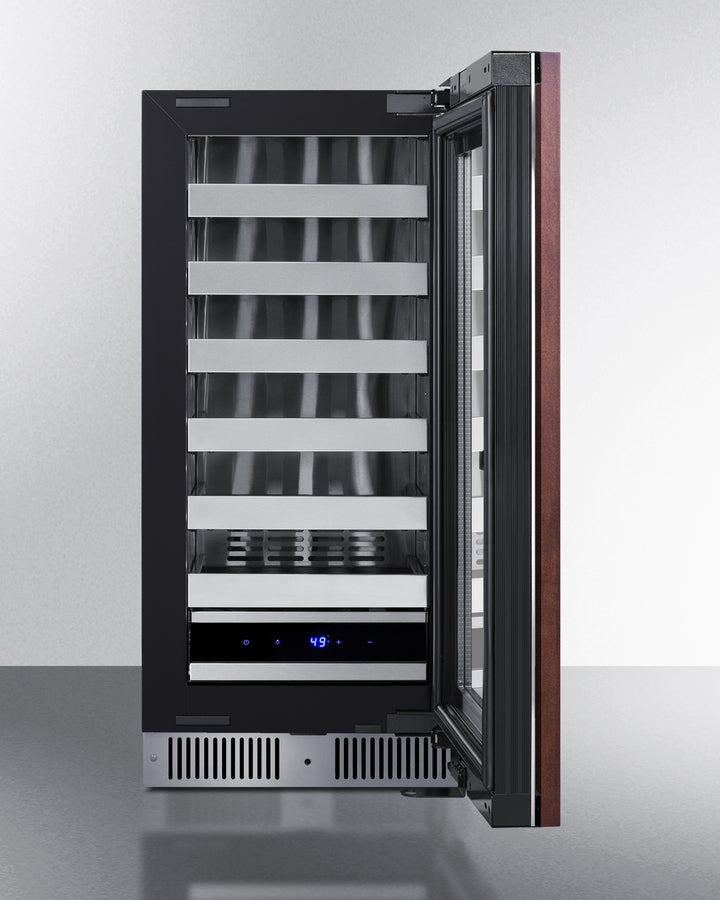

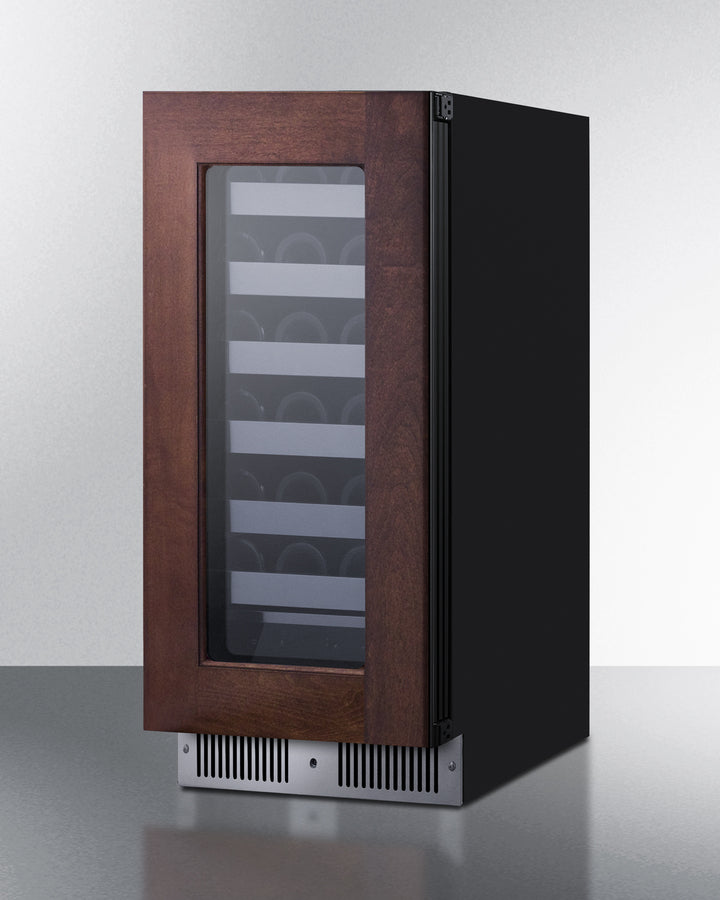

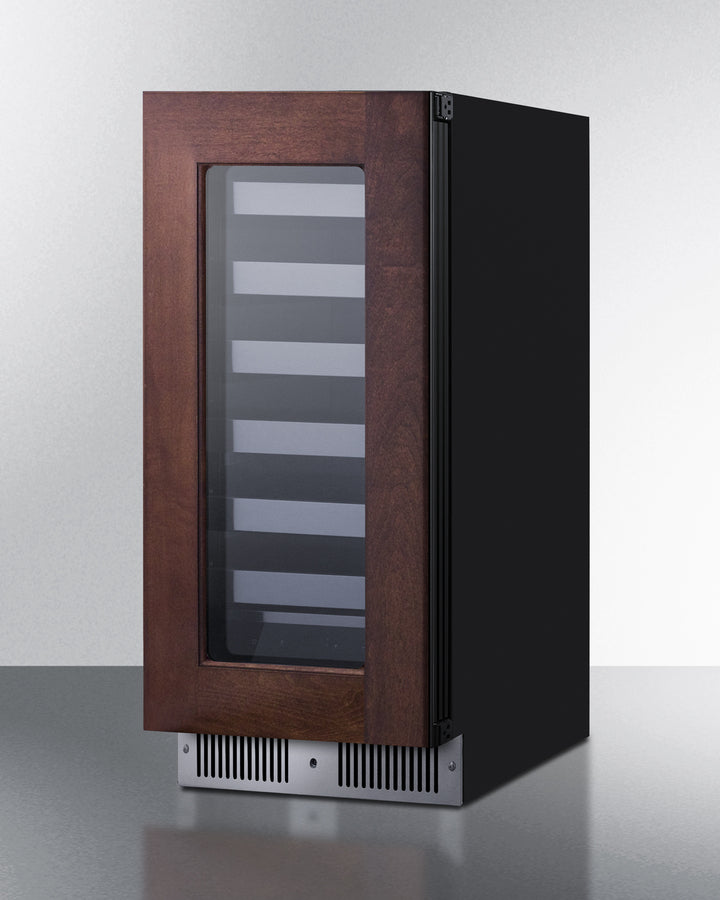

The SDHW1532PNR is a 15" wide single-zone wine cellar sized at 18" deep. It comes in a 34" height to fit standard undercounter spaces. The front-breathing system allows built-in installation, while the fully finished black cabinet also allows freestanding use. This unit has a sealed rear and right angle cord for a better fit. A lock is located in the kickplate for added security. The panel-ready SDHW1532PNR features our fully articulating European hinge, with a 2-piece bracket kit included to allow easy installation of your own custom door trim. The user-reversible door swing allows easy adjustment as needed.
The inside features stainless steel construction for improved durability and sanitation. White LED lighting in the side walls provides elegant display conditions, with dimmable levels that let you create the perfect presentation. The angled digital control panel enables you to adjust the temperature between 41º and 68ºF to accommodate red, white, or sparkling wine bottles. Our uniquely designed steel shelves in a jet black finish slide out smoothly, with stainless steel front trim to complete the classic look. Fan-forced cooling ensures even temperature distribution and fast temperature recovery.
Additional features include an open-door alarm, a high-temperature alarm, and a Sabbath mode setting that turns off some electrical elements for up to 96 hours during observances.
The SDHW1532PNR is ETL-S listed to NSF-7 commercial standards but can also be used in the home. With its deluxe style, user-friendly features, and uniquely shallow depth, this unit offers premium value for a variety of settings. Create a matching set by pairing this with our SDHG1533PNR beverage center.
Alternative 18" deep choices are available in 15", 19", and 24" widths, including outdoor refrigerators, refrigerator drawers, and more.

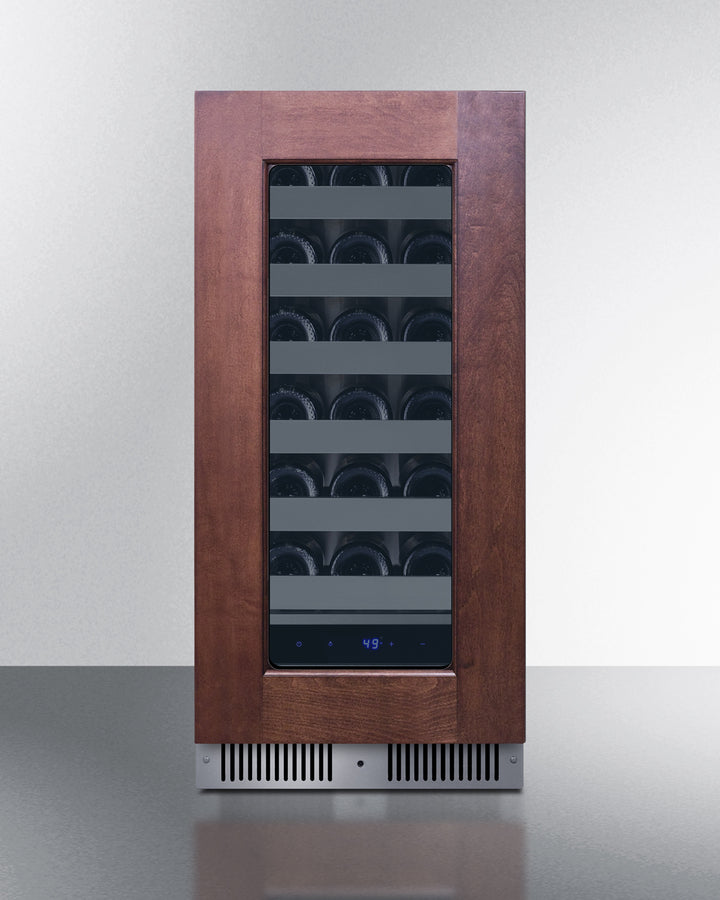

NOTE: The interior can store up to 18 Bordeaux-style bottles. Due to the shallow depth of this unit, we recommend loading the bottles with the cork facing the rear for a better fit. Wider Burgundy bottles will fit on most shelves, but as these may vary more in size, loading capacity will ultimately depend on your specific bottle. You may also remove shelves to accommodate thicker bottles, such as champagne and sparkling wine.
15" Wide Wine Cellar
Single zone wine cooler for residential or commercial storage
18" Depth
Unique 18" shallow depth is ideal for wet bars, island kitchens, and other undercounter areas with limited footprint space
Built-in capable
Front-breathing design lets you make the best use of space by installing your appliance under the counter
Commercially approved
ETL-S listed to NSF-7 Standards and meets UL-471 for use in commercial establishments
Versatile design
Innovative panel-ready bracket kit allows easy custom panel installation, but can also be removed cleanly if you redesign your space and prefer the look of stainless steel door trim

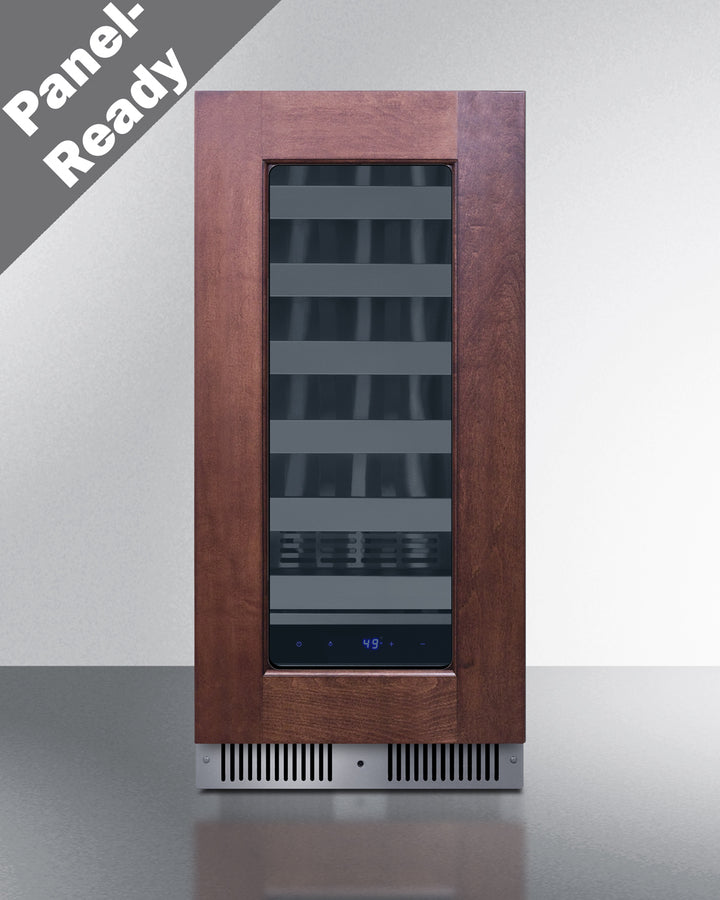

Panel-ready door trim
European style articulating door hinge and bracket kit allow easy installation of custom door trim panels to match adjacent cabinetry
Double pane tempered glass door
Elegant design offers a clear but protected view of your interior
Ideal temperature range
The unit's temperature range of 41º to 68ºF is ideal for red, white, or sparkling wine bottles

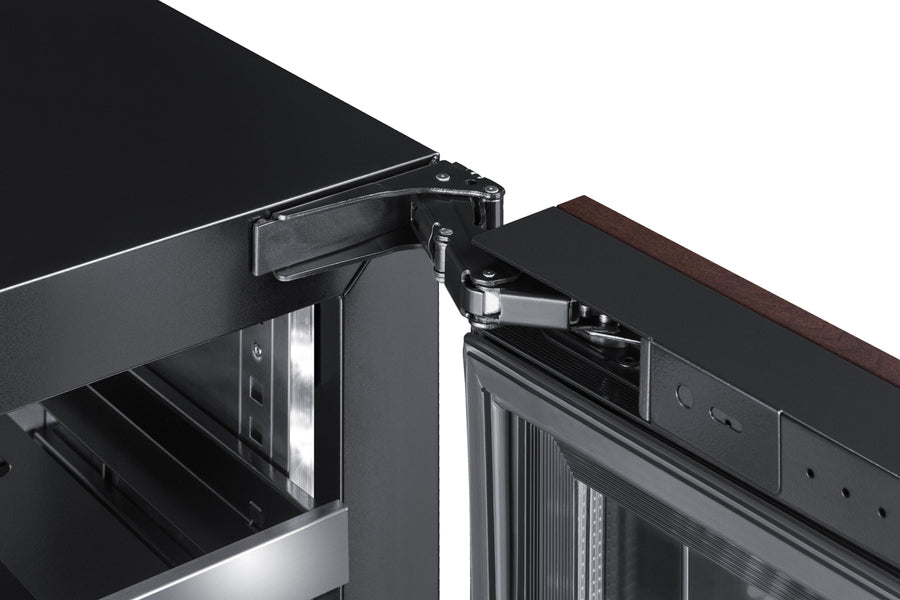

Fully articulating European style hinge
Smoother opening and a better fit with an integrated European hinge
Factory installed lock
Keyed lock for a secure interior (2 keys included)
Stainless steel interior
Walls and floor are constructed from stainless steel for added strength and easy cleanup

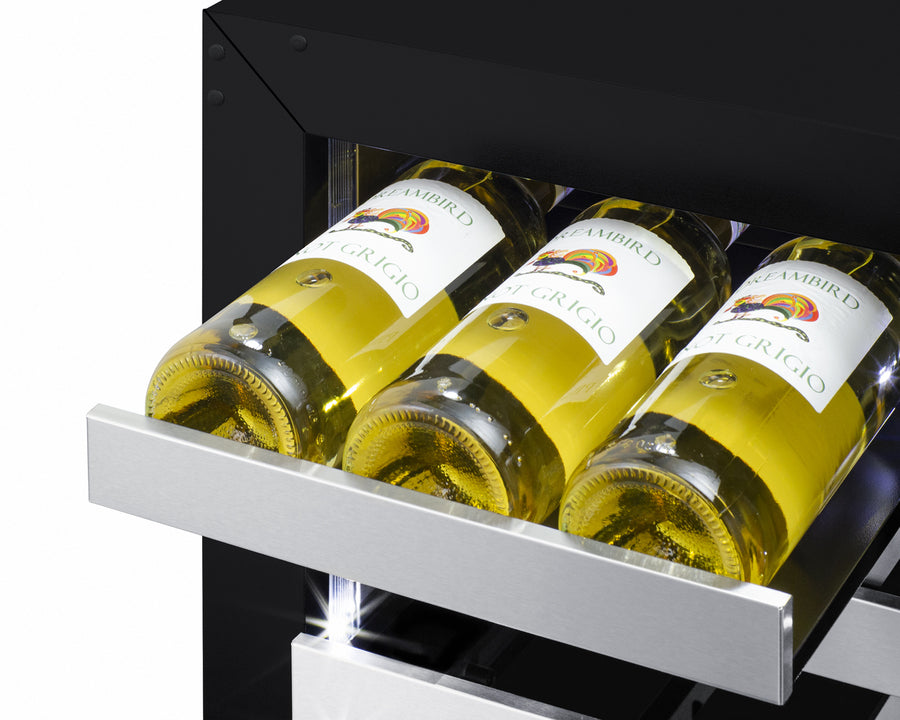

Commercial wine shelving
Removable steel shelves in a black finish with stainless steel trim for an elegant but modern look
Frost-free operation
No-frost operation for minimum user maintenance
Digital controls
Easy-to-use digital controls allow for precise temperature settings, which is crucial for maintaining the ideal storage temperature
Angled thermostat
Thermostat’s unique and ergonomic position allows for more accessible temperature readings with zero bending required
Open door alarm
Alarm sounds if the door is left open for more than 60 seconds
High/low temperature alarm
Audible alarm sounds if the interior temperature rises out of set range
Full capacity
18-bottle capacity with five gliding shelves that can each hold up to 6 bottles, and a floor shelf to hold up to 3 bottles in a horizontal configuration (NOTE: capacity may vary depending on specific bottle style)
Internal fan
Fan-forced cooling ensures fast temperature recovery and that the unit is evenly cooled from top to bottom

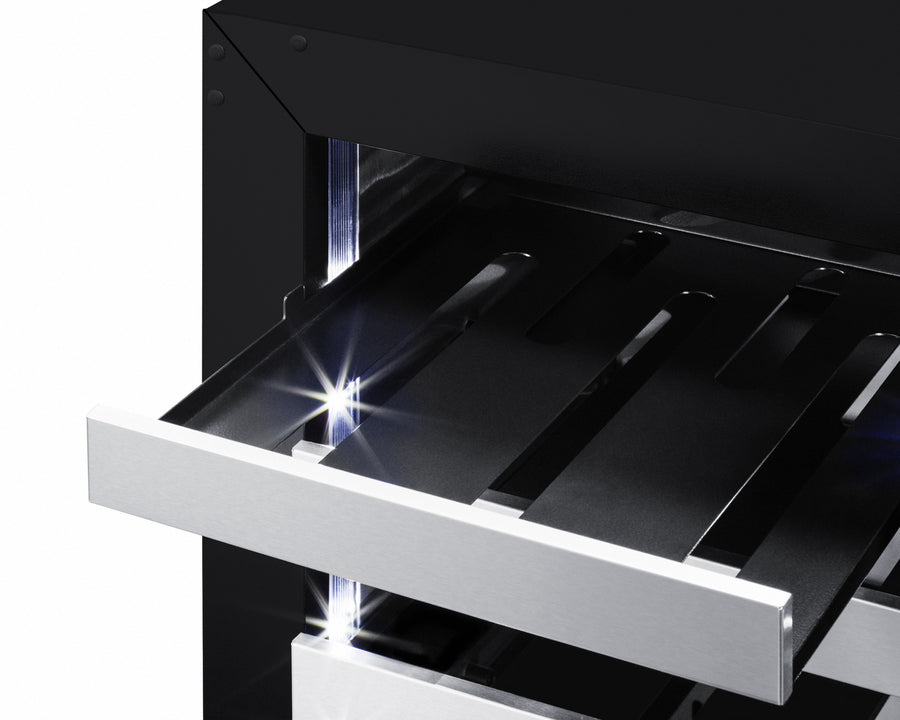

Dimmable LED light
Efficient and attractive presentation with white LED lighting strips located on each side of the cabinet that can be adjusted between three levels of brightness
Sabbath mode
Optional setting lets you disable the lighting and alarm for up to 96 hours
Temperature memory function
Unit will retain its last settings when power is restored in the event of power loss
Fully finished black cabinet
Allows the unit to be used freestanding
Sealed back
Space-saving design with no exposed coils that offers easier cleanability
Right angle plug
Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
Reversible door
User-reversible door swing for added flexibility to best accommodate your setting
Quiet operation
Runs under 34 dB for a quiet performance that won't interrupt your conversation
100% CFC free
Environmentally friendly design with no ozone-damaging chemicals
CARB compliant
Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
Overview
Height of Cabinet 33.75" (86 cm)
Width 23.38" (59 cm)
Depth 18.0" (46 cm)
Depth with door at 90° 41.25" (105 cm)
Capacity 3.5 cu.ft. (99 L)
Defrost Type Frost-Free
Door Glass/Panel-Ready Frame
Cabinet Black
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Sanitation ETL-S
Energy Usage/Year 290.0kWh/year
Amps 1.0
Voltage/Frequency 115 V AC/60 Hz
Weight 116.0 lbs. (53 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101145730
Refrigerator Features
Sabbath Mode Yes
Door Swing LHD
Shelf Type Glass
Shelf Qty 3
Adjustable Shelves Yes
Thermostat Type Digital
Fan Type Interior and Exterior
Refrigerant Type R600a
Refrigerant Amount 1.38oz.
High Side PSI 270.0
Low Side PSI 105.0
Interior Light Yes
Temperature Range 36°F to 43°F
Sound Level 33.5 dB
Dimensions
Interior Height 26.0" (66 cm)
Interior Width 19.25" (49 cm)
Interior Depth 12.25" (31 cm)
Compressor Step Height 3.75" (10 cm)
Compressor Step Width 19.25" (49 cm)
Compressor Step Depth 5.0" (13 cm)
