Summit Commercial manufactures a variety of refrigerator and freezer choices for smaller foodservice spaces, with slim-fitting options for undercounter use.

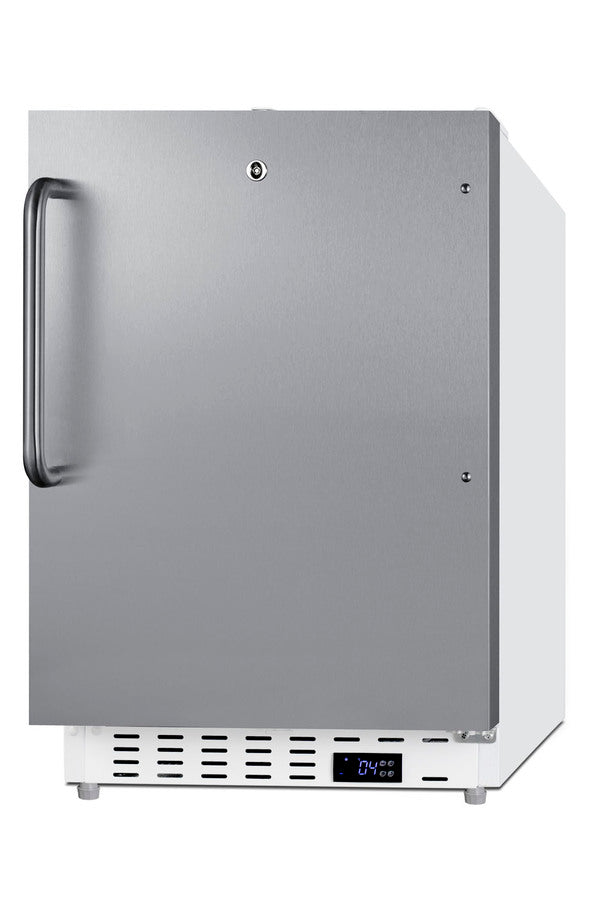

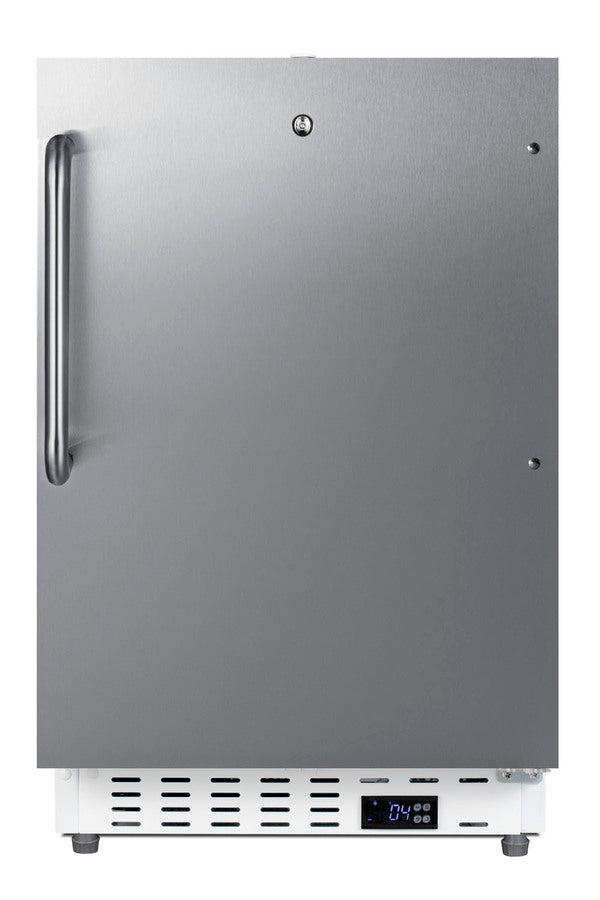

Model SCR504SSTBADA is a commercial all-refrigerator sized at just under 21" wide and 32" high for installation under lower ADA compliant counters. Its front-breathing design and fully finished cabinet allow built-in or freestanding use for versatile placement. This model has a textured white cabinet and 304 grade stainless steel wrapped reversible door with a pro style towel bar handle. A factory-installed lock is located towards the top of the door, ensuring more comfortable access behind the bar.

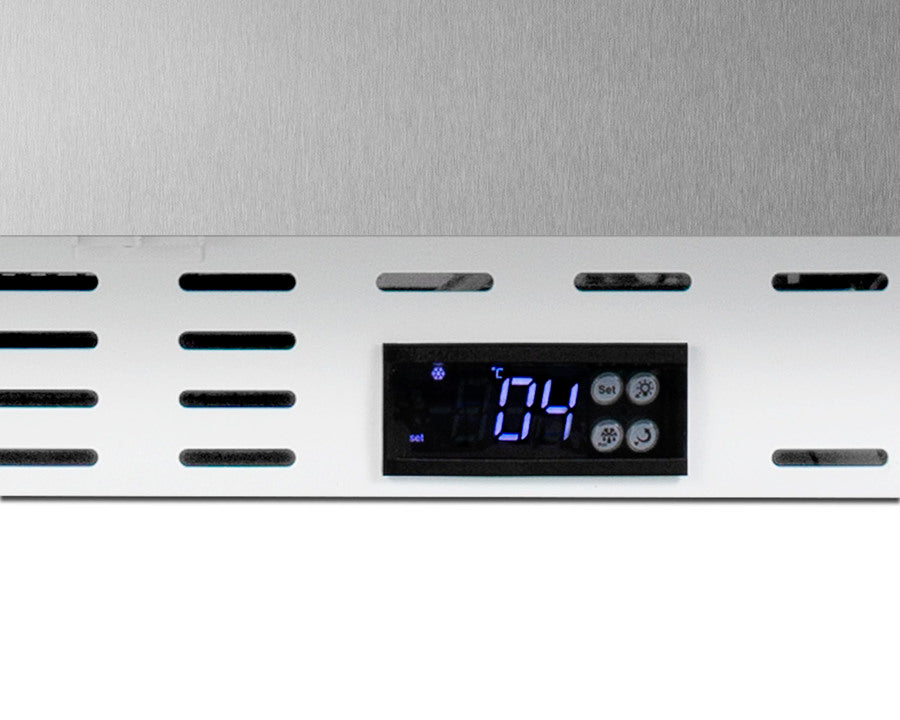

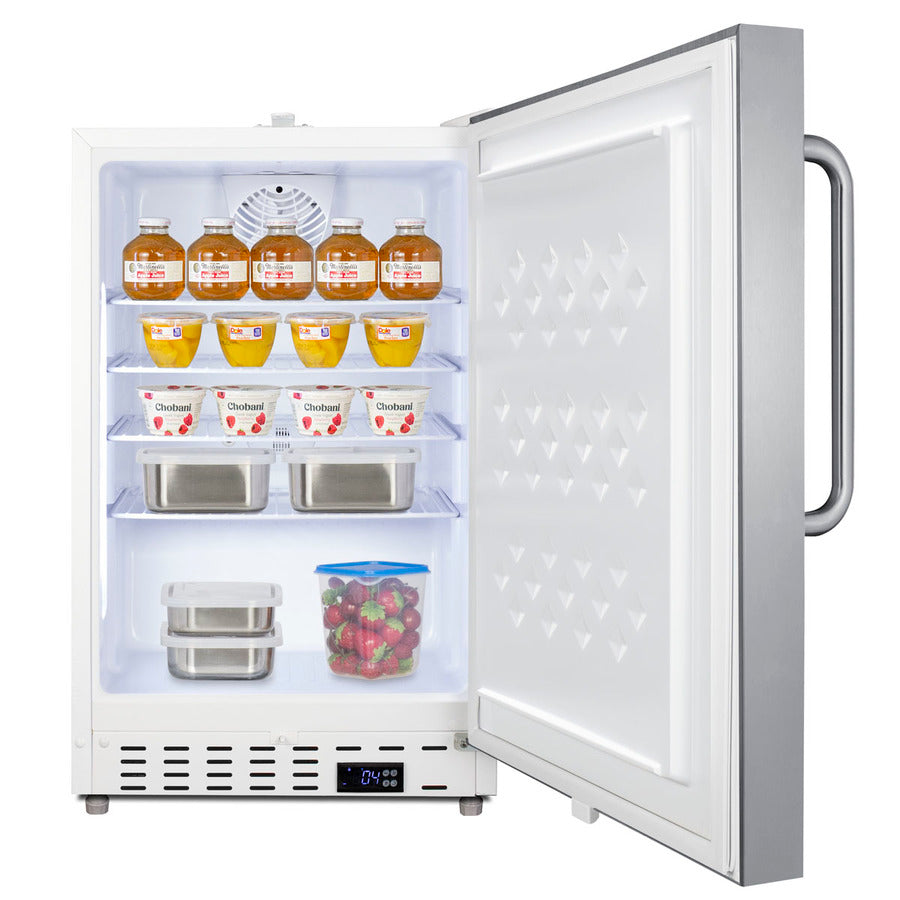

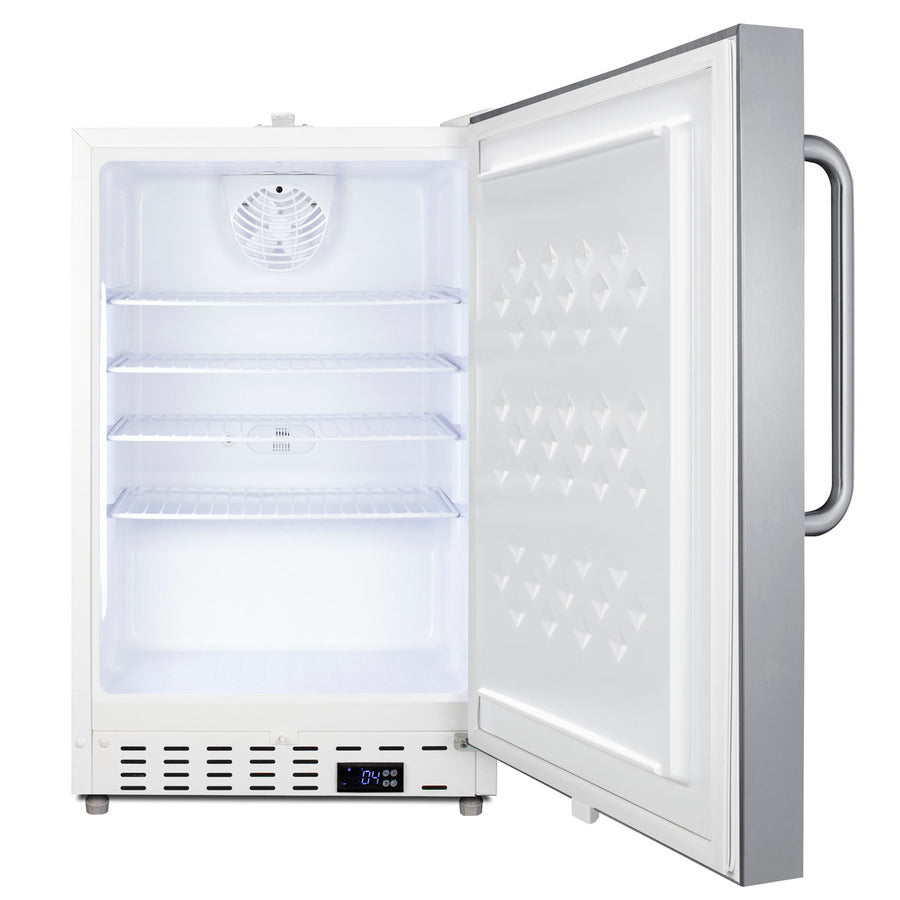

Easy digital controls are located in the kickplate. The temperature can be managed in Fahrenheit or Celsius. Inside, this refrigerator includes adjustable wire shelves, automatic LED lighting, and an internal fan to help ensure even cooling throughout the 3.32 cu.ft. interior. Audible open door and high/low temperature alarms help ensure stored contents are properly cooled. These alarms can also be disabled if preferred.
The SCR504SSTBADA is ETL-S listed to NSF-7 commercial standards and features hydrocarbon refrigerant for a greener cooling system that meets CARB regulations. To create a matching set, pair with the SCF505SSTBADA all-freezer. Additional commercial refrigeration choices are available in more sizes and sizes. Browse the full Summit lineup for shallow depth back bar coolers, commercial wine cellars, icemakers, reach-in refrigeration, and much more.
Commercially listed
ETL-S listed to ANSI-NSF Standard 7 for commercial use
ADA compliant design
32" height allows easy installation under lower ADA compliant counters
Built-in capable
Front-breathing design lets you make the best use of space by installing your appliance under the counter
Professional towel bar handle
Curved handle in brushed stainless steel offer an easier grip and attractive style
Factory-installed lock
Located towards the top of the door for easy access and to provide added security of unit (2 keys included)
Adjustable digital thermostat
Electronic controls located in the front kickplate for easy & institutive temperature management, with a readout in Fahrenheit or Celsius
Adjustable wire shelves
Four wire shelves provide optimal storage and improved air circulation in the 3.32 cu. ft. interior
3" thick door
Improved insulation for an efficient performance
Temperature alarms
User-set high/low temperature alarms provide added security if temperature goes beyond setpoint
Open door alarm
Audible alarm will sound if the door is left ajar for over a minute
Hospital grade cord with 'green dot' plug
Secure three-pronged cord offers a tighter fit in wall sockets
Automatic defrost
Reduced user maintenance with an auto defrost system
Flat door liner
Allows for the interior to accept deeper trays
Internal fan
Fan-forced cooling ensures the unit is evenly cooled from top to bottom
Reversible stainless steel door
User-reversible stainless steel door for added flexibility to best accommodate your setting
Sealed back
Space-saving design that offers easier cleanability
Interior light
Front-located LED light ensures entire interior is lit when door opens
Magnetic door gasket
Quality door gaskets ensure a tight seal for energy savings and improved performance
Matching all-freezer
This unit can be paired with the SCF505SSTBADA all-freezer for a complete set
Fully finished white cabinet
Allows the unit to be freestanding
Access port
Unit comes with a factory installed probe hole for users to connect their own monitoring equipment
100% CFC free
Environmentally friendly design without ozone-damaging chemicals
CARB Compliant
Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
Overview
Nominal Height 32.0" (81 cm)
Height of Cabinet 31.75" (81 cm)
Height to Hinge Cap 32.0" (81 cm)
Nominal Width 21.0" (53 cm)
Width 20.25" (51 cm)
Nominal Depth 23.0" (58 cm)
Depth 22.5" (57 cm)
Depth with Handle 25.0" (64 cm)
Depth with door at 90° 40.25" (102 cm)
Capacity 3.32 cu.ft. (94 L)
Defrost Type Automatic
Door Stainless Steel
Cabinet White
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Sanitation ETL-S
Amps 1.1
Voltage/Frequency 115 V AC/60 Hz
Weight 69.0 lbs. (31 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101086132
Refrigerator Features
Door Swing RHD
Reversible Yes
Shelf Type Wire
Shelf Qty 4
Thermostat Type Digital
Fan Type Interior
Refrigerant Type R600a
Refrigerant Amount 0.99oz.
High Side PSI 180.0
Low Side PSI 80.0
Level Legs Qty 2
Interior Light Yes
Temperature Range 2 to 8°C
Dimensions
Interior Height 23.5" (60 cm)
Interior Width 16.25" (41 cm)
Interior Depth 17.0" (43 cm)
Compressor Step Height 6.25" (16 cm)
Compressor Step Width 16.25" (41 cm)
Compressor Step Depth 6.0" (15 cm)
Handle
TBC Copper Towel Bar Handle Upgrade AMHandle - Antimicrobial handle
Exterior
LHD - Left hand door swing
