Summit's Peak24 series of undercounter European-made refrigeration features energy efficient refrigerator-freezer choices that offer the largest capacity in the industry for recessed installation in 24" openings.
Sized with a 24” footprint, the ENERGY STAR certified CT661W refrigerator-freezer offers over 5 cu.ft. of storage capacity, a larger interior than many units in this size class. This model features a white exterior finish with a user-reversible door swing. A stainless steel handle completes the look.

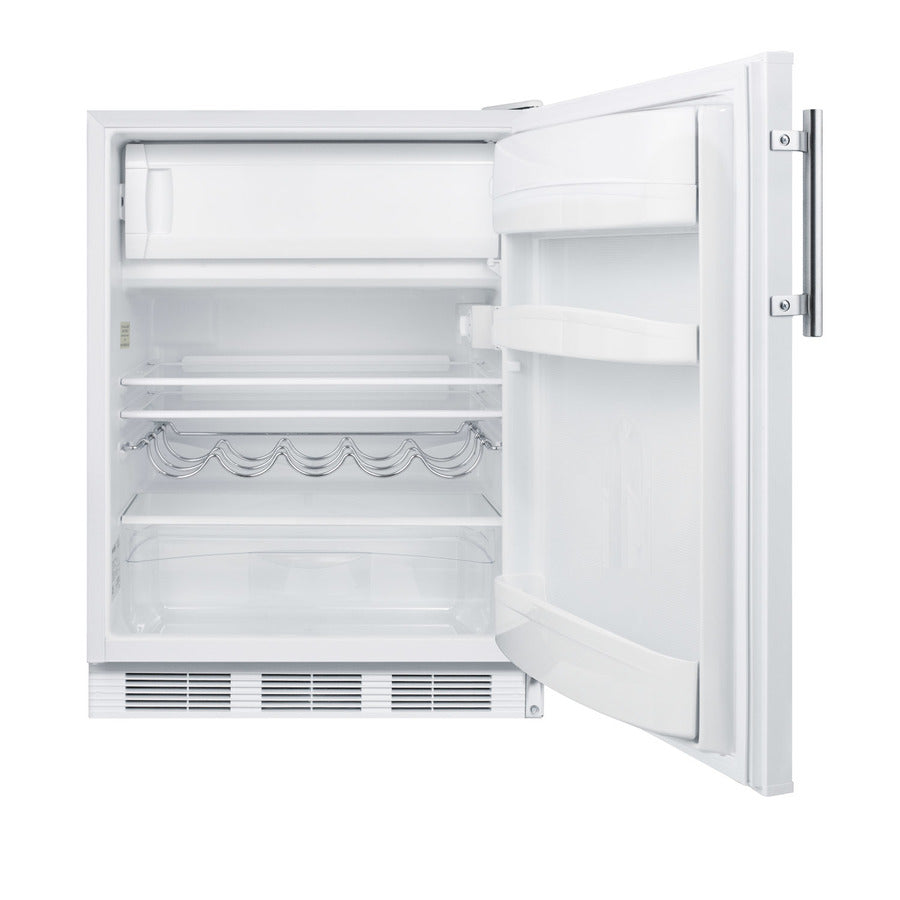

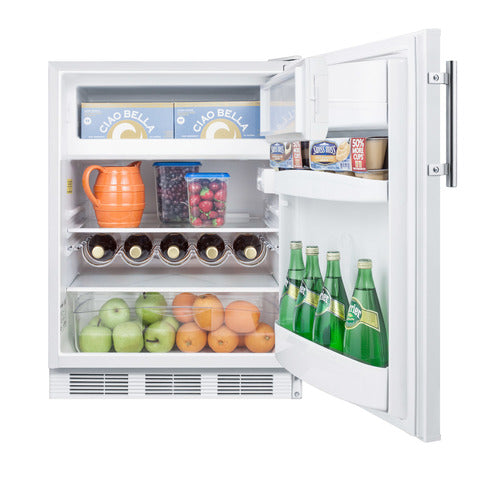

Inside, the CT661W features a dual evaporator to allow separated cooling of the fresh and frozen food sections. The refrigerated compartment utilizes low maintenance automatic defrost, while the interior freezer compartment is manual defrost to achieve lower storage temperatures ideal for ice cream and other frozen food. The deluxe interior includes adjustable glass shelves for spill-proof storage and easier cleaning, as well as a scalloped wine shelf to hold wine and champagne bottles safely in place. Door racks offer additional convenience for tall bottles and condiments and a clear crisper drawer ensures your produce is stored under the ideal conditions. This model includes automatic interior lighting and an adjustable dial thermostat.
This model is UL listed for residential use. With its large capacity and user-friendly features, this refrigerator-freezer is a convenient option for homes, offices, schools, and other settings in need of reliable cold storage. Additional choices are available in lower ADA height. Browse the full Summit catalog to discover the perfect appliance for your refrigeration needs.
Peak24 Series
European-made collection for recessed installation featuring large capacity interiors, ENERGY STAR certified performances, and versatile style
24" Wide European Refrigerator-Freezer
Includes a full refrigerator and freezer section for undercounter use
ENERGY STAR certified
Rated by the DOE to perform with more efficiency than federal standards require, saving your unit energy and you on higher utility costs
Slim counter height dimensions
Ideal 24" footprint offers full 5.1 cu.ft. storage capacity in a slim fit for recessed installation
Cycle defrost
This system utilizes user-friendly automatic defrost operation in the fresh food section and efficient manual defrost operation in the freezer compartment
Dual evaporator cooling
Our unique and efficient design separately cools the refrigerator while maintaining a lower temperature in the freezer compartment by utilizing two evaporators
Adjustable glass shelves
Rearrange your refrigerator space to accommodate all shapes and sizes or remove shelves for a simple clean-up
Fruit and vegetable crisper
Get the longest life and best taste out of produce by storing it in a convenient slide drawer
Door storage
Store tall bottles and condiments right on the door for convenient access
Wine shelf
Removable scalloped wine shelf is included to store champagne and wine bottles
Interior light
Automatically illuminates when you open the door
Hidden evaporator
Cold wall design with hidden evaporator creates a seamless, easy to clean interior
Adjustable thermostat
Dial thermostat located inside for easy temperature management
Reversible door
User-reversible door swing for added flexibility
100% CFC free
Environmentally friendly design without ozone-damaging chemicals
CARB Compliant
Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
Overview
Height of Cabinet 32.63" (83 cm)
Width 23.63" (60 cm)
Depth 23.0" (58 cm)
Depth with Handle 24.63" (63 cm)
Depth with door at 90° 45.38" (115 cm)
Capacity 5.04 cu.ft. (143 L)
Defrost Type Cycle
Door White
Cabinet White
US Electrical Safety UL
Canadian Electrical Safety ULC
Energy Usage/Year 330.0kWh/year
Amps 1.2
Voltage/Frequency 115 V AC/60 Hz
Weight 100.0 lbs. (45 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101067490
Refrigerator-Freezer
Door Swing RHD
Reversible Yes
Adjustable Shelves Yes
Crisper Qty 1
Crisper Finish Transparent
Crisper Cover Glass
Wine Bottle Shelving Yes
Interior Light Yes
Refrigerator - Interior Height 18.0" (46 cm)
Refrigerator - Interior Width 21.0" (53 cm)
Refrigerator - Interior Depth 18.0" (46 cm)
Refrigerator - Capacity 4.5 cu.ft
Refrigerator - Shelf Type Glass
Refrigerator - Shelf Qty 2
Refrigerator - Full Door Shelves 3
Freezer - Interior Height 5.25" (13 cm)
Freezer - Interior Width 19.0" (48 cm)
Freezer - Interior Depth 11.5" (29 cm)
Freezer - Capacity 0.6 cu.ft
Thermostat Type Dial
Refrigerant Type R600a
Refrigerant Amount 0.92 oz.
Level Legs 2
Compressor Step Height 5.5" (14 cm)
Compressor Step Width 21.0" (53 cm)
Compressor Step Depth 6.0" (15 cm)
Sound Level 32.6 dBa
Exterior
SSK - Stainless steel kickplate SS Hinges
DL2B - Factory installed NIST calibrated digital data logger (DDL) PH - Probe Hole
LHD - Left hand door swing Latch - Factory-installed latch requires manual release to open unit (NOTE: adds 1 1/2" of width)
HG - Hospital grade cord CAS3 3" casters
Alarm/Thermometer - Factory-installed alarm with external temperature readout
Door
CDY-Saffron gold door wrap CDP-Lavender purple door wrap
CDG-Emerald green door CDB-Cobalt blue door wrap
STO-Step-To-Open Door Pedal
Handle
TBC Copper Towel Bar Handle AMHandle - Antimicrobial handle
Lock
L-SideLock KEYPAD - Battery-powered keypad door lock
AC Keypad - AC powered keypad lock
