SUMMIT's selection of built-in undercounter refrigeration includes one of the industry's only complete 18" wide lines for use in ADA compliant settings.

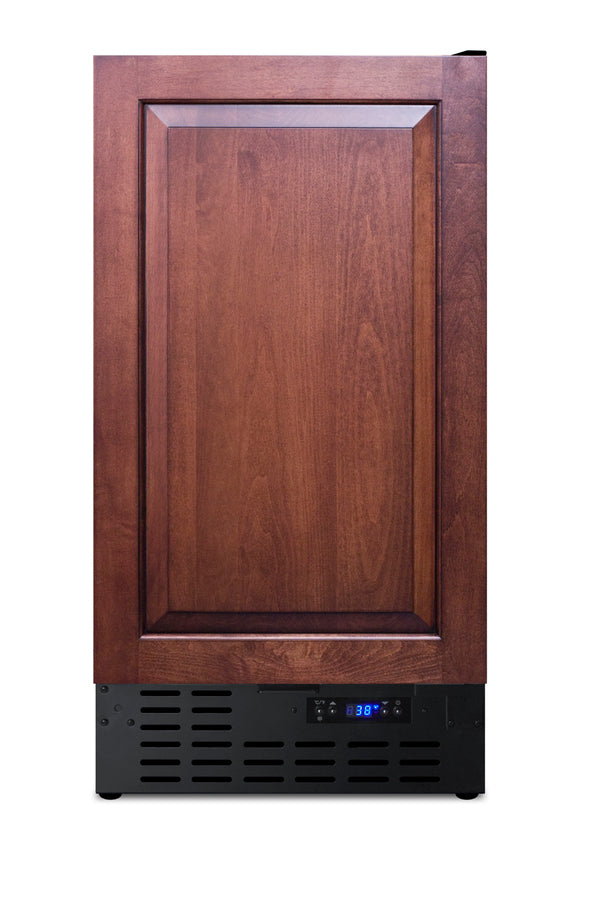

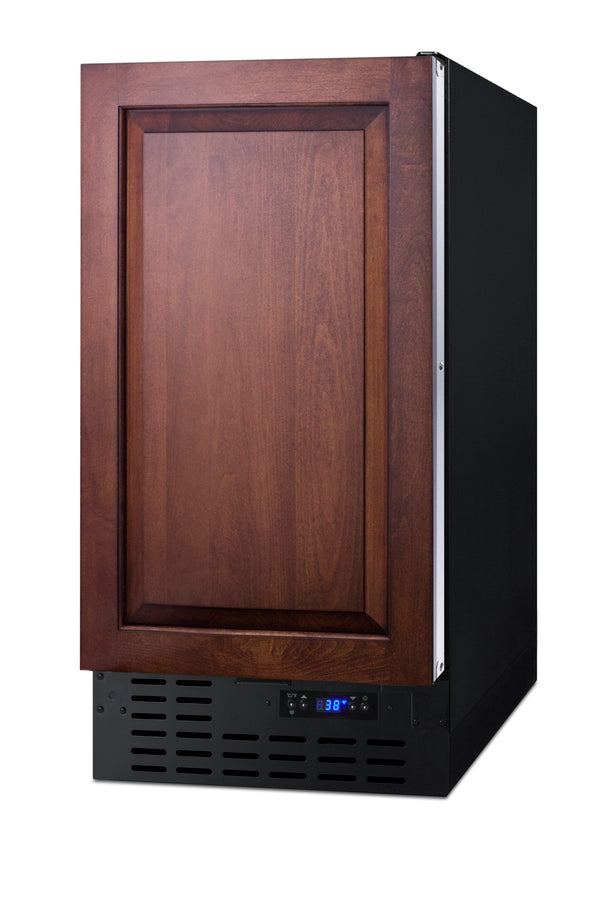

Sized just under 18" wide and 32" high, the FF1843BIFADA is the perfect all-refrigerator for space-challenged kitchens. It comes with a black cabinet. The door features an integrated stainless steel door frame designed to accept full overlay panels for a custom look. This unit can be used built-in or freestanding. Users provide their own handle.

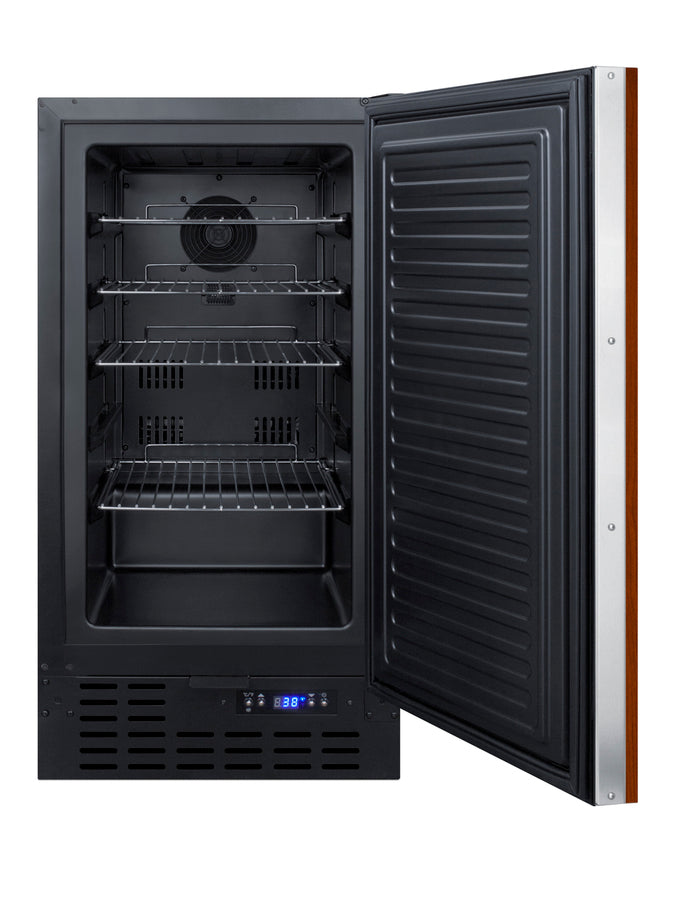

Inside, the FF1843BIFADA utilizes automatic defrost operation for low maintenance use. Four adjustable chrome shelves accommodate a variety of sizes and LED lighting offers an efficient interior view. This unit includes a digital thermostat for optimum temperature management.
Combine the FF1843BIFADA with its matching freezer, wine cellar, or beverage refrigerator. We also offer this model in black or stainless steel.
ADA compliant
32" height is designed to fit under lower ADA compliant counters
Built-in capable
Front-breathing design lets you make the best use of space by installing your appliance under the counter
Commercially approved
ETL-S listed to ANSI-NSF Standard 7 for use in commercial establishments
Integrated door frame
Stainless steel door frame accepts full overlay panels for users to create a seamless custom look (panel size: 17 1/2" W x 27 3/4" H; maximum weight: 10 lbs.))
Automatic defrost
Reduced maintenance with auto defrost system
Digital thermostat
Electronic controls for precise temperature management.
Digital display
Temperature readout can be shown in Celsius or Fahrenheit
LED lighting
Automatically illuminates when the door is open
Adjustable chrome shelves
Rearrange interior space to accommodate all sizes or remove shelves for simple cleanup
Flush back
Space saving design
Fully finished black cabinet
Allows the unit to be used freestanding
100% CFC Free
Environmentally friendly design with no ozone-damaging chemicals
CARB Compliant
Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
Overview
Nominal Height 32.0" (81 cm)
Height of Cabinet 31.5" (80 cm)
Nominal Width 18.0" (46 cm)
Width 17.75" (45 cm)
Width with Door Open 18.63" (47 cm)
Nominal Depth 24.0" (61 cm)
Depth 24.0" (61 cm)
Depth with door at 90° 40.0" (102 cm)
Capacity 2.7 cu.ft. (76 L)
Defrost Type Automatic
Door Panel-Ready
Cabinet Black
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Sanitation ETL-S
Energy Usage/Year 250.0kWh/year
Amps 1.1
Voltage/Frequency 115 V AC/60 Hz
Weight 90.0 lbs. (41 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101047010
Refrigerator Features
Door Swing RHD
Reversible Factory Reversible
Shelf Type Chrome
Shelf Qty 4
Adjustable Shelves Yes
Thermostat Type Digital
Fan Type Interior and Exterior
Refrigerant Type R600a
Refrigerant Amount 1.06oz.
High Side PSI 150.0
Low Side PSI 50.0
Level Legs Qty 2
Interior Light Yes
Sound Level 33.1 dB
Dimensions
Interior Height 23.5" (60 cm)
Interior Width 12.75" (32 cm)
Interior Depth 16.75" (43 cm)
Compressor Step Height 4.5" (11 cm)
Compressor Step Width 12.75" (32 cm)
Compressor Step Depth 4.5" (11 cm)
Exterior
LHD - Left hand door swing Latch - Factory-installed latch requires manual release to open unit (NOTE: adds 1 1/2" of width)
