Summit's extensive selection of built-in undercounter commercially approved wine cellars includes elegant choices that let you achieve a custom look ideal for any space.
The SWC532BLBISTPNRLHD is a dual zone wine cellar sized for 24" spaces. The front-breathing design allows built-in installation, while the fully finished black cabinet also enables freestanding use. The panel-ready door features our fully articulating European style hinging, with a 2-piece bracket kit included to allow easy installation of your own custom door trim to match or blend into adjacent cabinetry. A factory-installed lock offers added security and a stainless steel kickplate completes the look.
Inside, the SWC532BLBISTPNRLHD is designed to store up to 46 standard Bordeaux style bottles, or a combination of 30 Bordeaux and 16 wider Burgundy bottles. The digital control panel allows you to manage the upper temperature chamber between 41 and 50ºF for white wine, while the lower zone is designed to store red wine between 50 and 64ºF. Six full-extension black wire shelves with stainless steel front trim move out smoothly on ball-bearing glides for easy loading. Both compartments include recessed LED lighting in a gentle blue hue for an attractive and efficient presentation.
This unit is ETL-S listed to NSF-7 commercial standards. With its advanced user features and versatile design, the SWC532BLBISTPNRLHD makes a great addition to any ADA compliant setting looking to store wine in modern style. Additional panel-ready wine cellars are available in more sizes (including shallow depth). Explore the full Summit line to discover the perfect choice for your space.

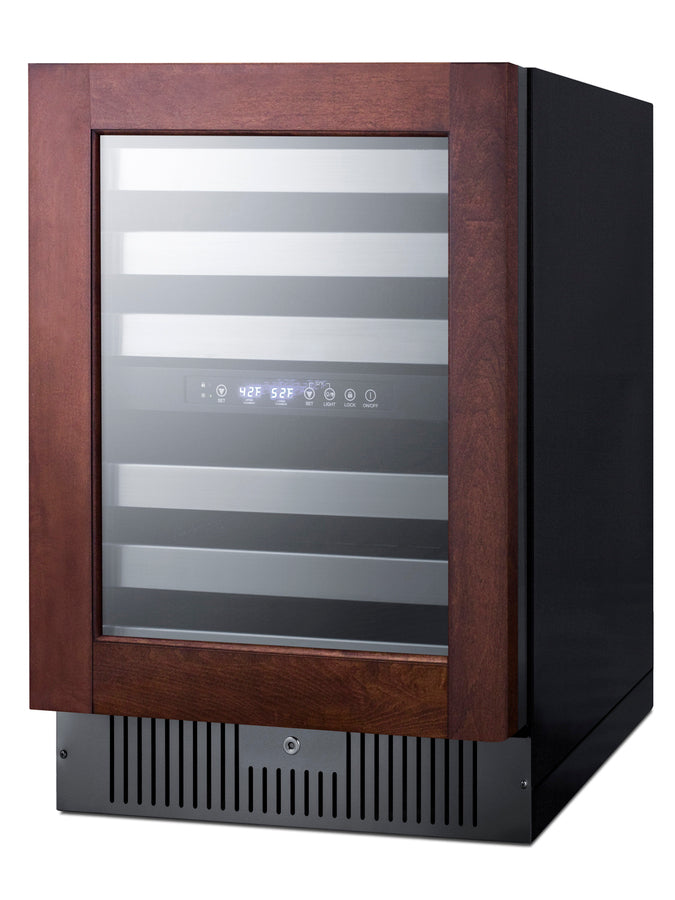

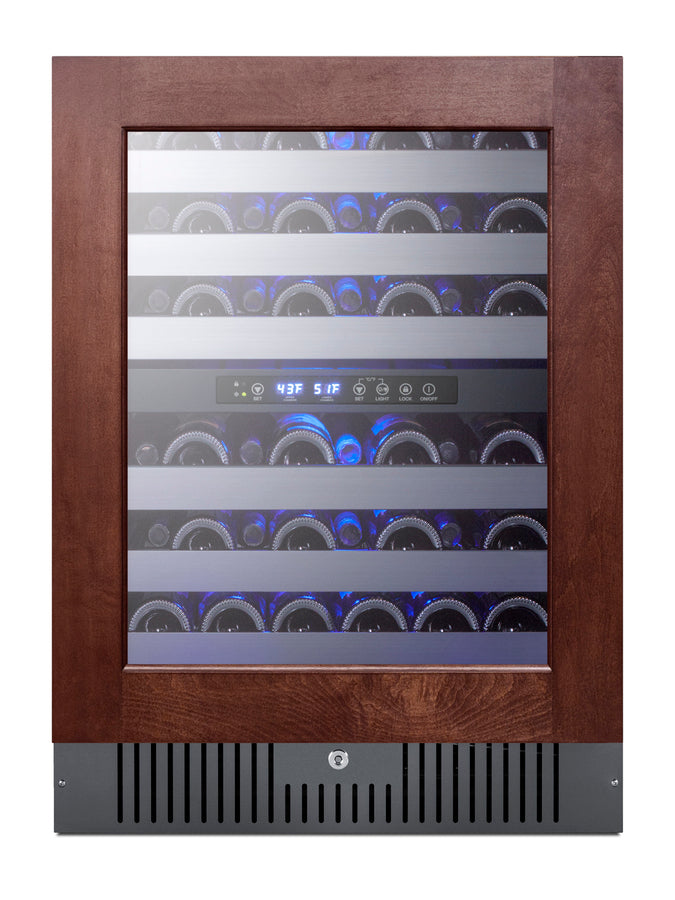

24" Dual Zone Wine Cellar
Undercounter wine cellar with a panel-ready glass door in a 24" footprint with evenly split temperature zones
Built-in capable
Front-breathing design allows this unit to be installed under counters

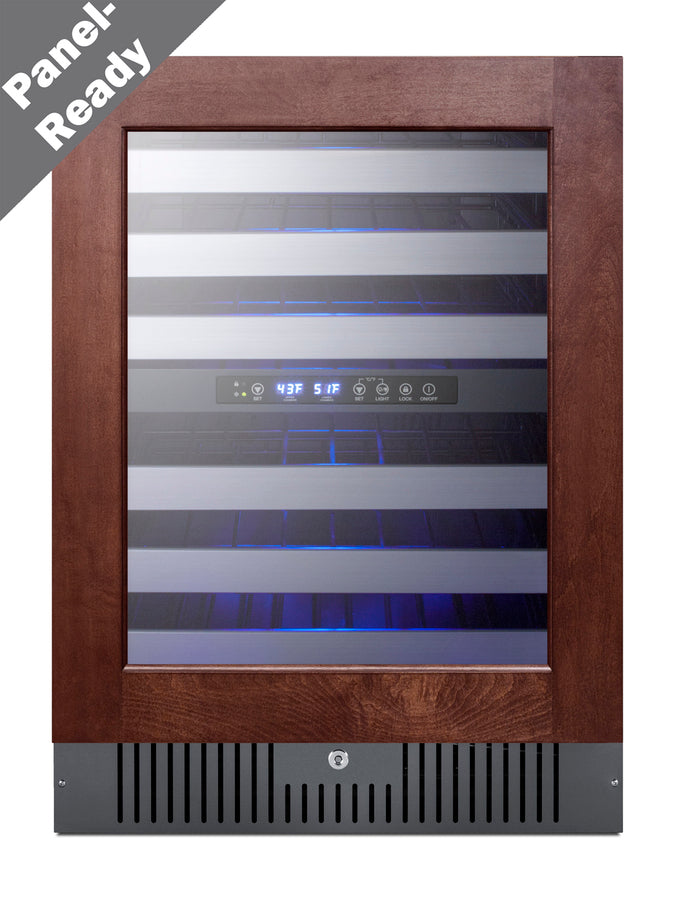

Panel-ready door trim
Innovative bracket kit allows easy installation of custom door trim panels to match adjacent cabinetry; recommended panel dimensions: 3/4" thickness at 29 1/4" H x 23 1/8" W with a 22 3/8" H x 17 3/4" W viewable area

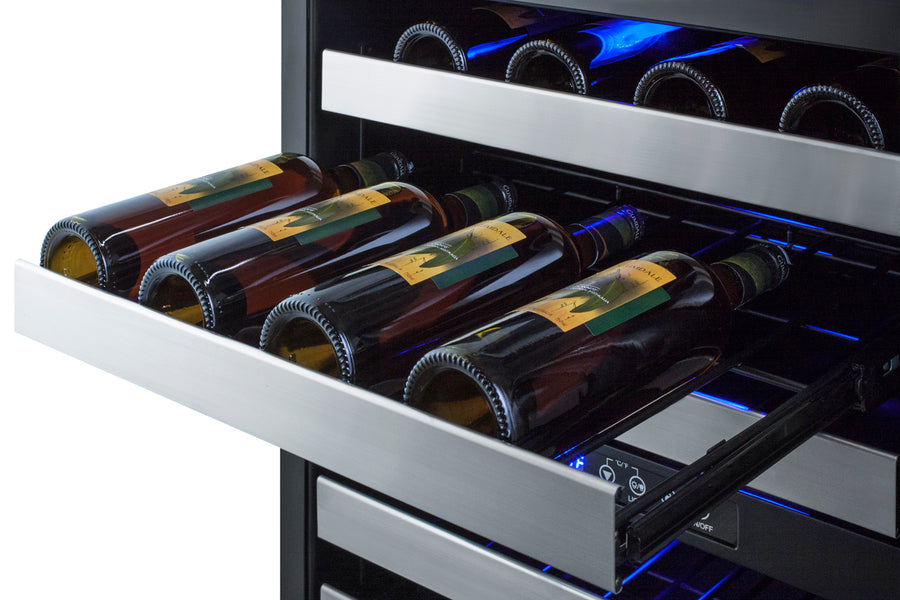

Flexible commercial grade shelving
Black wire shelves with oversized stainless steel front trim for a modern look that's easier to clean than standard wood shelving and offers a more versatile fit for a variety of bottles

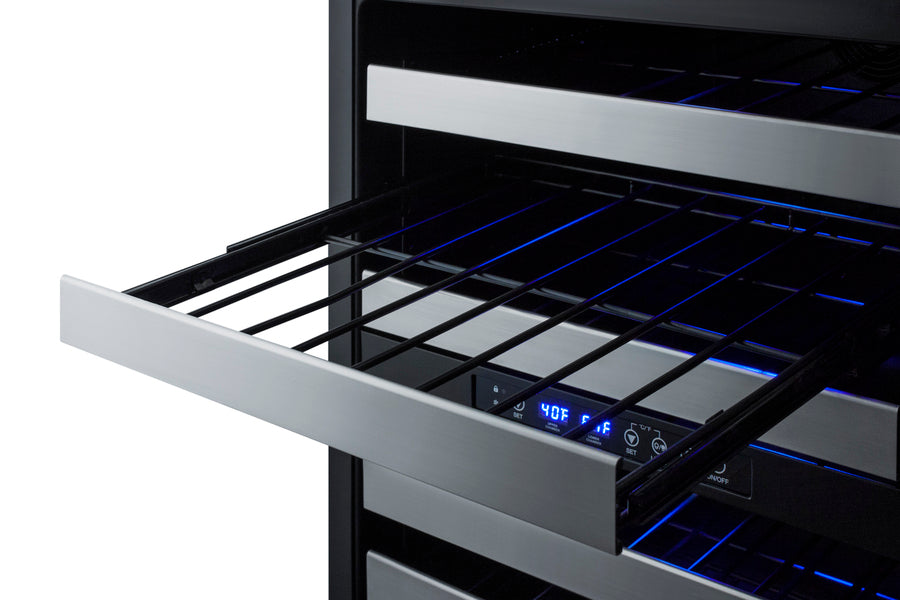

Full-extension shelving
Shelves move smoothly on ball-bearing glides for easier loading and unloading
Two temperature zones
Lower zone for reds has a temperature range of 50º F to 64º F; Upper zone stores whites and sparkling wine between 41º F and 50º F

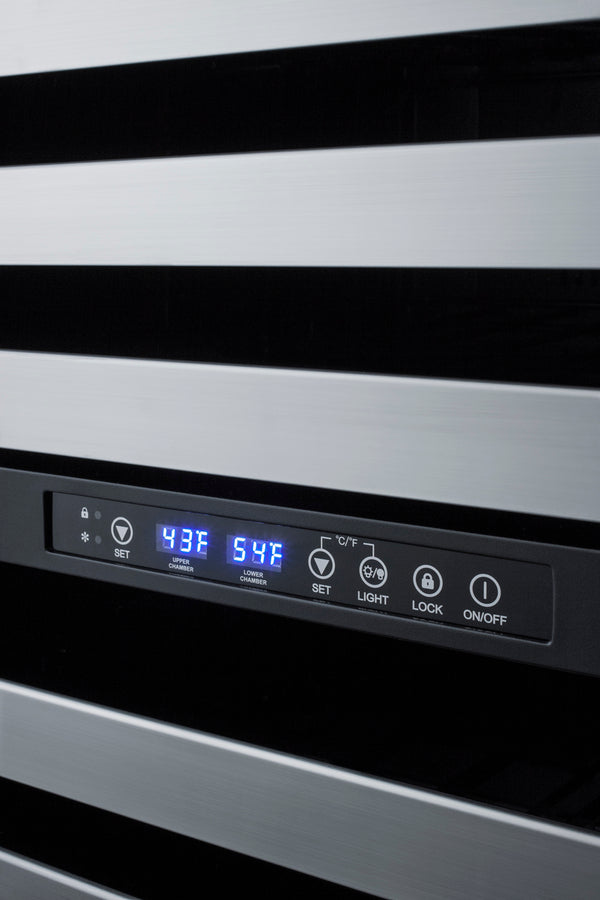

Digital control panel
Easy temperature management with electronic controls located inside
Versatile readout
Temperature viewable in Celsius or Fahrenheit
Automatic defrost
Reduced maintenance with auto defrost system
Double pane tempered glass door
Provides a full display of the interior, with two levels of glass for added protection
Interior lighting
Recessed LED lighting in both compartments brings striking blue illumination to your collection
Factory installed lock
Keyed lock for secure interior, with two keys included

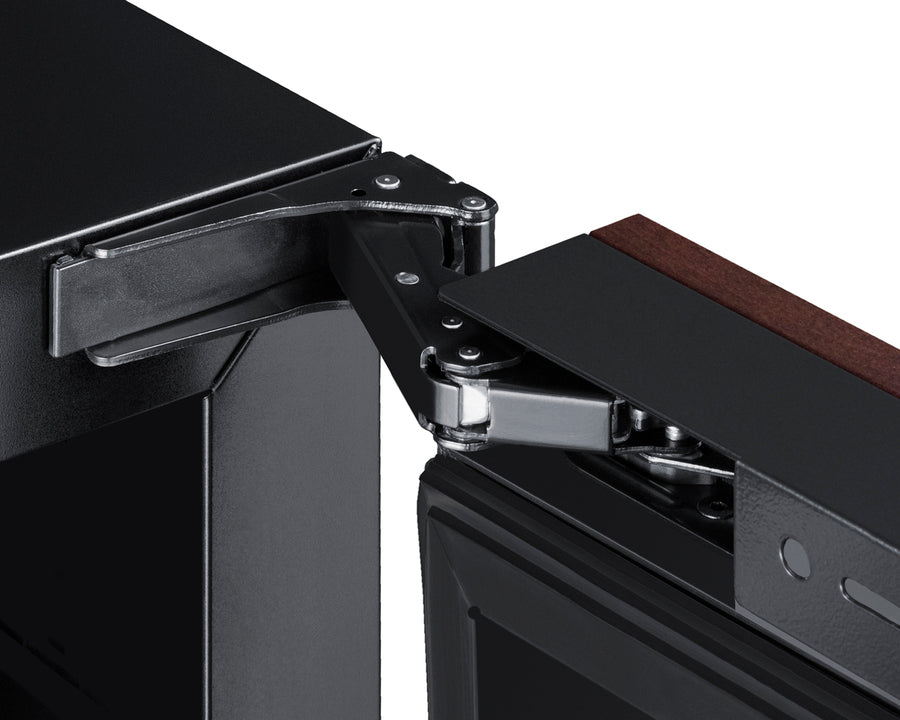

Fully articulating hinge
Smoother opening and a better fit with an integrated European style door hinge
Fully finished black cabinet
Allows the unit to be used freestanding
Commercially listed
ETL-S listed to NSF-7 Standards for use in commercial establishments
100% CFC Free
Environmentally friendly design with no ozone-damaging chemicals
CARB Compliant
Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

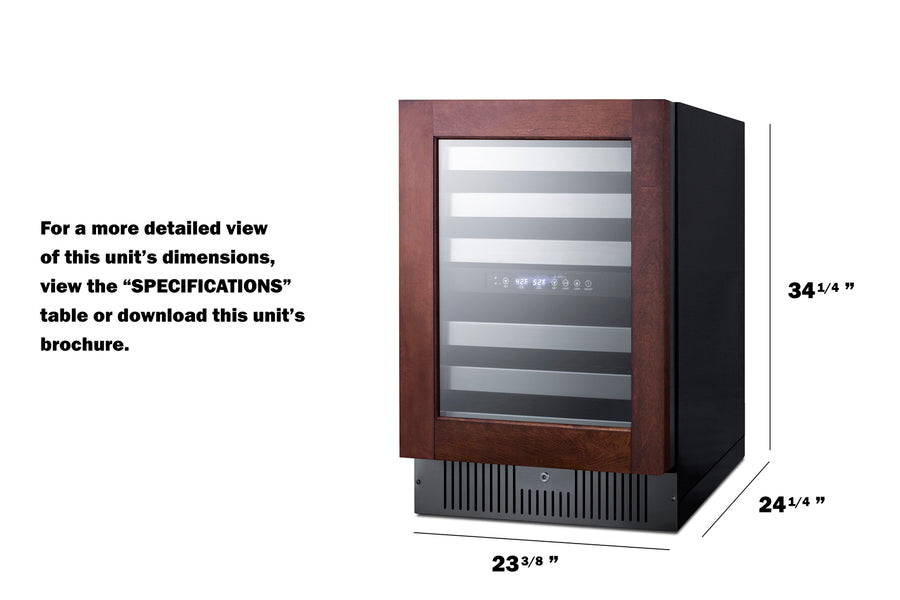

Overview
Nominal Height 34.0" (86 cm)
Height of Cabinet 34.25" (87 cm)
Nominal Width 24.0" (61 cm)
Width 23.38" (59 cm)
Nominal Depth 24.0" (61 cm)
Depth 23.5" (60 cm)
Depth with Panel 24.25" (62 cm)
Depth with door at 90° 47.38" (120 cm)
Bottles 46 bottles
Defrost Type Automatic
Door Glass/Panel-Ready Frame
Cabinet Black
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Sanitation ETL-S
Amps 1.25
Voltage/Frequency 115 V AC/60 Hz
Weight 113.0 lbs. (51 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101101552
Wine Cellar
Number of Zones 2
Door Swing LHD
Shelf Type Wire
Shelf Qty 6
Thermostat Type Digital
Interior Light Yes
Fan Type Interior and Exterior
Refrigerant Type R600a
Refrigerant Amount 1.23 oz.
High Side PSI 150.0
Low Side PSI 50.0
Interior Height 1 11.63" (30 cm)
Interior Width 1 20.5" (52 cm)
Interior Depth 1 18.0" (46 cm)
Compressor Step Depth 6.0" (15 cm)
Level Legs 2
Temperature Range 41 to 64ºF
Interior Height 2 11.88" (30 cm)
Interior Width 2 20.5" (52 cm)
Interior Depth 2 18.0" (46 cm)
Door
T4 Door Tint T3 Door Tint
T2 Door Tint T1S Door Tint
T1 Door Tint
