Summit Commercial's extensive lineup of beverage centers and refrigerators offers the perfect storage conditions for restaurants and other foodservice establishments.

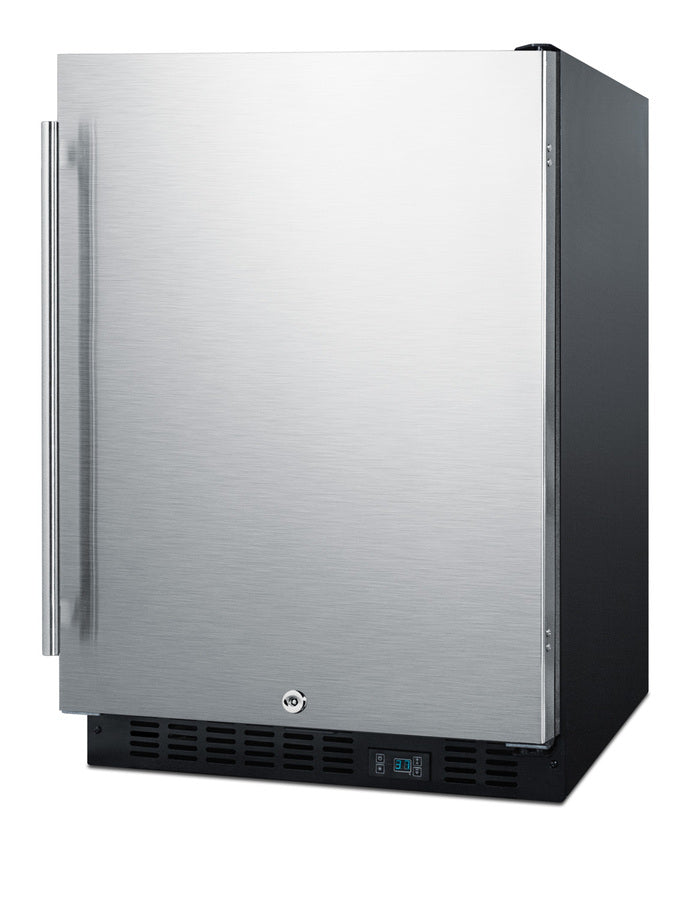

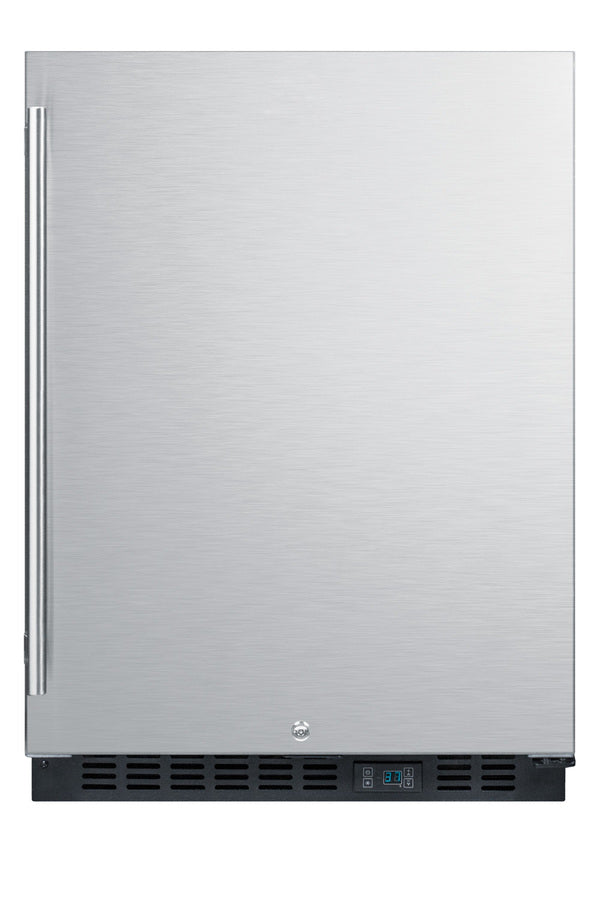

The SCR610BLSDV1 comes in an easy-fitting 24" footprint, with a front-breathing design that can be built-in under counters or used freestanding. The reversible door includes a professional handle, and factory installed lock. A digital thermostat is located in the kickplate for easy temperature management.
Inside, the SCR610BLSDV1 utilizes low maintenance automatic defrost operation with an internal fan to ensure even temperature distribution. Recessed LED lighting offers the perfect display conditions inside the durable and easy-to-clean stainless steel interior. This unit includes three cantilevered chrome shelves to ensure flexible storage that accommodates any item size. The interior is taller than many refrigerators in its class, allowing the unit to easily store two rows of 12" high bottles. High temperature and open door alarms offer added protection in busy commercial settings.
The SCR610BLSDV1 is ETL-S listed to NSF-7 for use in commercial settings. For this unit with a glass door, see the SCR610BL.
24" Wide Commercial Beverage Center
Solid door all-refrigerator designed for commercial storage
Commercially approved
ETL-S listed to NSF-7 Standards for use in commercial establishments
Built-in capable
Make the best use of space by installing this unit under the counter and flush with other cabinetry
Stainless steel door
Professional finish with a matching handle
Stainless steel interior
Walls are constructed from stainless steel for added strength and easy cleanup
Factory installed lock
Keyed lock for a secure interior
Digital thermostat
Intuitive digital controls ensure easy temperature management
Reversible door
User-reversible door swing allows for more flexibility in placing the unit
Cantilevered chrome shelves
Rearrange refrigerator space to accommodate all sizes or remove shelves for simple cleanup
Tall interior
25" high interior accommodates two vertical rows of 12" tall bottles
Recessed LED lighting
Efficient and attractive lighting illuminates stored products
Open door alarm
Audible alarm will sound if the door is left ajar for over a minute
High temperature alarm
Alarm sounds if the interior temperature rises out of suggested range
Automatic defrost
Reduced user maintenance with automatic defrost
Sabbath mode setting
Optional setting lets you disable the lighting and alarm for up to 48 hours
Temperature Memory Function
Unit will retain its last settings when power is restored in the event of power loss
Fan-forced cooling
Internal fan ensures the interior is evenly cooled from top to bottom
Sealed back
Space saving design with easier cleanability
Fully finished black cabinet
Allows the unit to be used freestanding
CARB Compliant
Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
100% CFC free
Environmentally friendly design without ozone-damaging chemicals
Overview
Nominal Height 34.0" (86 cm)
Height of Cabinet 34.0" (86 cm)
Nominal Width 24.0" (61 cm)
Width 23.63" (60 cm)
Nominal Depth 24.0" (61 cm)
Depth 23.5" (60 cm)
Depth with Handle 25.38" (64 cm)
Depth with door at 90° 45.5" (116 cm)
Capacity 4.88 cu.ft. (138 L)
Defrost Type Automatic
Door Stainless Steel
Cabinet Black
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Sanitation ETL-S
Energy Usage/Year 290.0kWh/year
Amps 0.8
Voltage/Frequency 115 V AC/60 Hz
Weight 100.0 lbs. (45 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101148298
Refrigerator Features
Sabbath Mode Yes
Door Swing RHD
Reversible Yes
Shelf Type Chrome
Shelf Qty 3
Adjustable Shelves Yes
Thermostat Type Digital
Fan Type Interior and Exterior
Refrigerant Type R600a
Refrigerant Amount 0.99oz.
High Side PSI 270.0
Low Side PSI 105.0
Level Legs Qty 2
Interior Light Yes
Temperature Range 36°F to 43°F
Sound Level 37.4 dB
Dimensions
Interior Height 25.0" (64 cm)
Interior Width 19.38" (49 cm)
Interior Depth 17.38" (44 cm)
Compressor Step Height 3.75" (10 cm)
Compressor Step Width 19.38" (49 cm)
Compressor Step Depth 4.63" (12 cm)
Exterior
PH - Probe Hole LHD - Left hand door swing
Latch - Factory-installed latch requires manual release to open unit (NOTE: adds 1 1/2" of width)
Interior
LockBoxW - Interior locking compartment with window LockBoxSS - Interior locking compartment
