SUMMIT COMMERCIAL offers a quality line of commercially approved drawer refrigerators assembled in the U.S.A. and fully constructed from stainless steel.

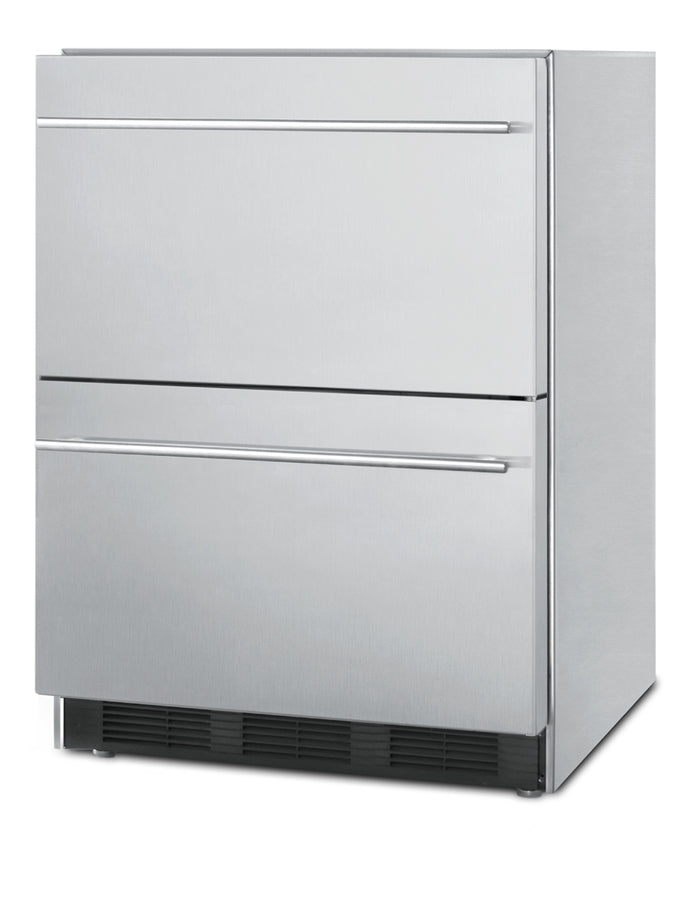

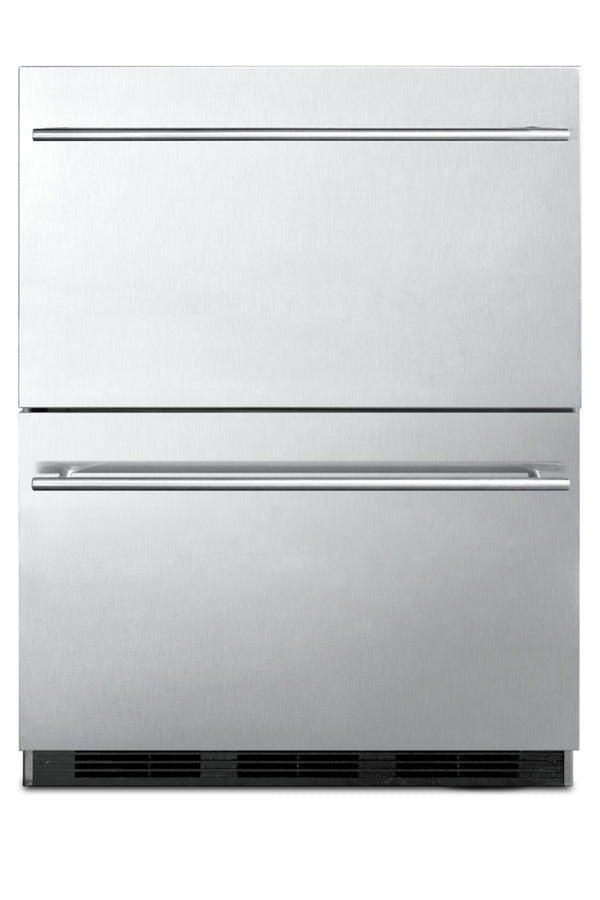

The SP6DBS2D7ADA is a 24" wide two-drawer all-refrigerator that can be used built-in or freestanding. At 32" high, this unit is designed for use under lower ADA compliant counters. Two sliding drawers feature sleek stainless steel handles and magnetic gaskets to ensure a tight seal when closed. This unit includes an adjustable divider that lets you better organize your storage. The cabinet and drawers are constructed from durable stainless steel to ensure long-lasting luxury with a professional look. We offer an optional conversion kit that allows the drawers to be customized with overlay panels (see Panel Kit).
Automatic defrost ensures minimum user maintenance, with a dial thermostat for easy temperature management. This model is ETL-S listed to NSF-7 standards for commercial use. For this unit in standard counter height, see the SP6DBS2D7.
ADA Compliant
32 inch height is designed to fit under ADA compliant counters
Commercially approved
ETL-S listed to NSF-7 Standards for use in commercial establishments
Slim undercounter dimensions
Less than 24 inches wide to fit tight spaces
Built-in capable
Make the best use of space by installing your appliance under the counter and flush with other cabinetry
Fully finished cabinet
Allows the unit to be used freestanding
Complete stainless steel construction
Built with solid durability, inside and out
Automatic defrost
Reduced maintenance with auto defrost system
Adjustable thermostat
Dial thermostat for easy temperature management
Rapid chill compartment
Special rear section is perfect for chilling wine and beer from room to drinking temperature in under an hour

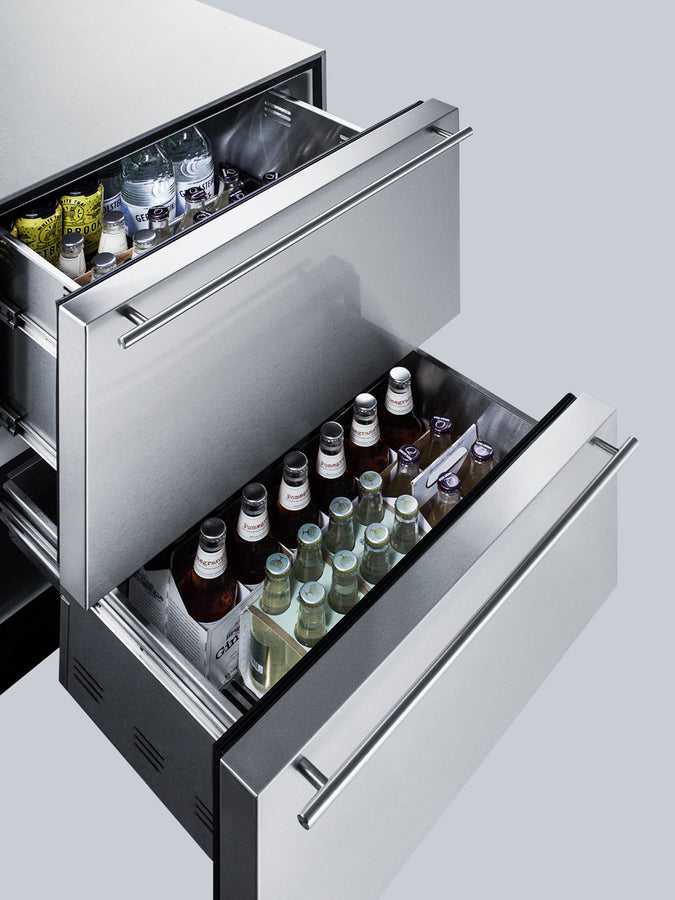

Adjustable drawer divider
Wire divider lets you separate items into four sections for easier organization
Large top drawer
Holds two liter bottles, gallon containers, and wine bottles in 12 1/2" height
Customizable drawer fronts
Order our conversion kit to install your own panels over the drawers
100% CFC free
Environmentally friendly design does not contain ozone-damaging chemicals
CARB Compliant
Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
Overview
Nominal Height 32.0" (81 cm)
Height of Cabinet 32.25" (82 cm)
Nominal Width 24.0" (61 cm)
Width 23.63" (60 cm)
Nominal Depth 24.0" (61 cm)
Depth 23.88" (61 cm)
Depth with Handle 25.38" (64 cm)
Depth with door at 90° 41.25" (105 cm)
Capacity 3.1 cu.ft. (88 L)
Defrost Type Automatic
Door Stainless Steel
Cabinet Stainless Steel
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Sanitation ETL-S
Amps 1.2
Weight 120.0 lbs. (54 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101069517
Refrigerator Features
Thermostat Type Dial
Fan Type Interior and Exterior
Refrigerant Type R600a
Refrigerant Amount 0.64oz.
High Side PSI 180.0
Low Side PSI 80.0
Level Legs Qty 4
Drawer Dimensions
Interior Height 1 9.5" (24 cm)
Interior Width 1 18.75" (48 cm)
Interior Depth 1 12.0" (30 cm)
Interior Height 2 12.63" (32 cm)
Interior Width 2 17.25" (44 cm)
Interior Depth 2 16.0" (41 cm)
Dimensions
Compressor Step Height 5.75" (15 cm)
Compressor Step Width 18.75" (48 cm)
Compressor Step Depth 4.0" (10 cm)
Exterior
SSK - Stainless steel kickplate DL2B - Factory installed NIST calibrated digital data logger (DDL)
PH - Probe Hole HG - Hospital grade cord
DT - Digital thermostat Alarm/Thermometer - Factory-installed alarm with external temperature readout
