Summit's shallow-depth series of built-in undercounter refrigeration brings full functionality to kitchen islands, wet bars, and other settings with space limitations.

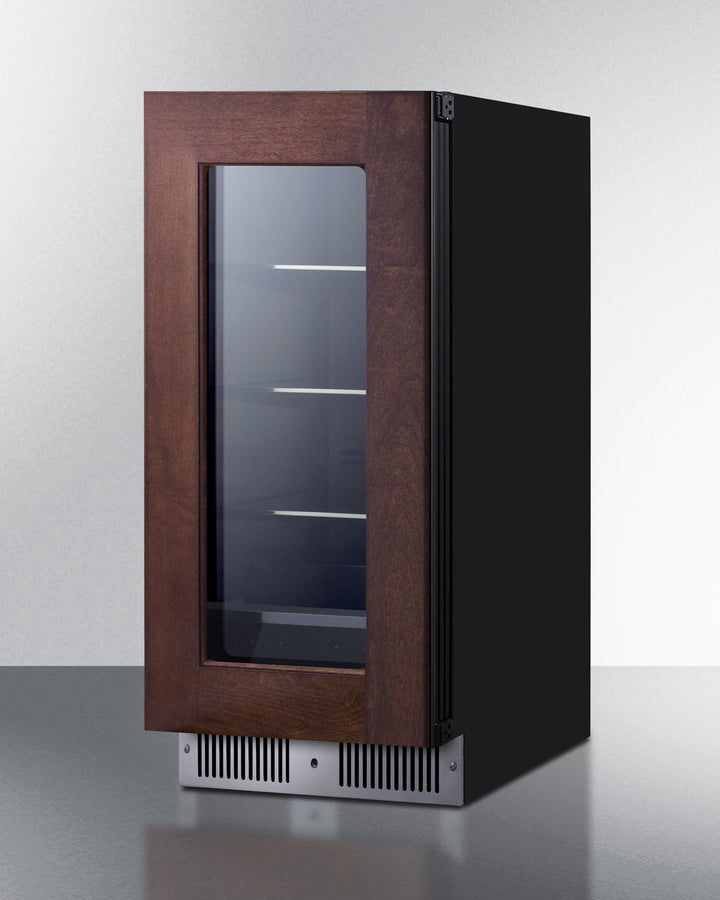

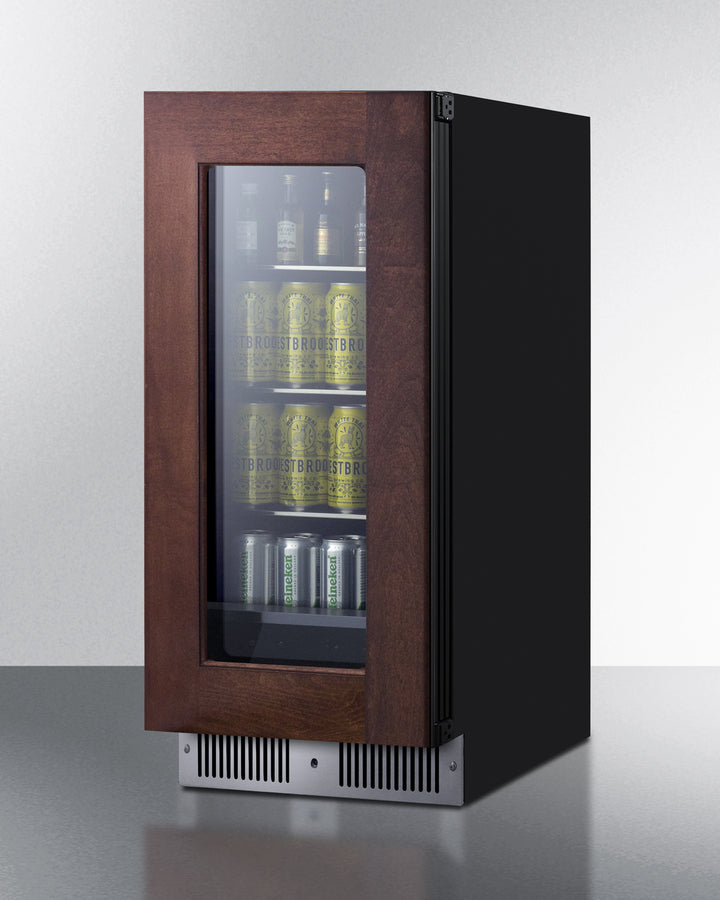

The SDHG1533PNRLHD is a 15" wide beverage refrigerator, sized at 18" deep. It comes in a 34" height to fit standard counter spaces. The front-breathing system allows built-in installation, while the fully finished black cabinet also allows freestanding use. This unit has a sealed rear and right angle cord for a better fit. A lock is located in the kickplate for added security. The panel-ready SDHG1533PNRLHD features our fully articulating European hinge, with a 2-piece bracket kit included to allow easy installation of your own custom door trim. This unit comes with a left-hand door swing. For a right-hand version, see the SDHG2443PNR.

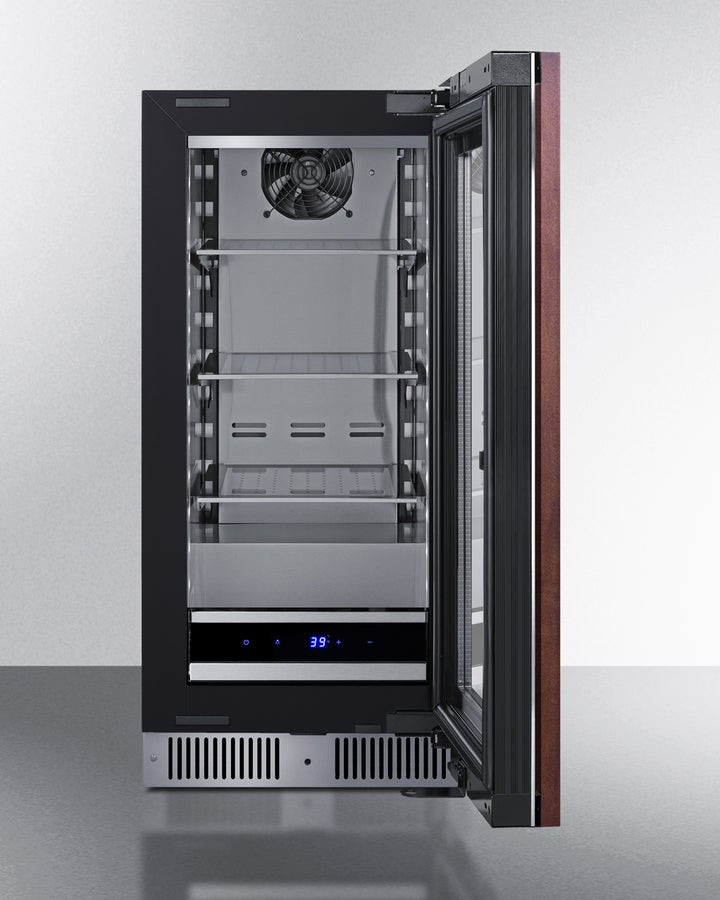

The SDHG1533PNRLHD's interior features stainless steel construction for improved durability and sanitation. Fan-forced cooling ensures even temperature distribution and fast temperature recovery. This unit includes an LED strip on each side of the interior cabinet, with dimmable settings in a gentle white hue that lets you create the perfect display conditions. Glass shelves ensure flexible storage to accommodate any size. The angled digital thermostat makes temperature readout and management easy and intuitive, with indicator lights showing when the interior is ideal for chilling beverages between 36°F and 43°F.
Additional features include an open-door alarm, a high-temperature alarm, and a Sabbath mode setting that turns off some electrical elements for up to 96 hours during observances.
The SDHG1533PNRLHD is ETL-S listed to NSF-7 commercial standards but can also be used in the home. Create a matching set by pairing this with our SDHW1532 wine cellar. This unit comes with a left-hand door swing. For a right-hand version, see the SDHG1533PNR.
Alternative 18" deep choices are available in 15", 19", and 24" widths, including outdoor refrigerators, refrigerator drawers, and more. For a 24" wide unit, see model SDHG2443PNRLHD
15" Wide Beverage Center
Undercounter glass door beverage refrigerator for residential or commercial use
18" depth
Unique 18" depth is ideal for wet bars, island kitchens, and other undercounter areas with limited footprint space
Built-In capable
Front-breathing design lets you make the best use of space by installing your appliance under the counter
Commercially approved
ETL-S listed to NSF-7 Standards for use in commercial establishments
Versatile design
Innovative panel-ready bracket kit allows easy custom panel installation, but can also be removed cleanly if you redesign your space and prefer the look of stainless steel door trim

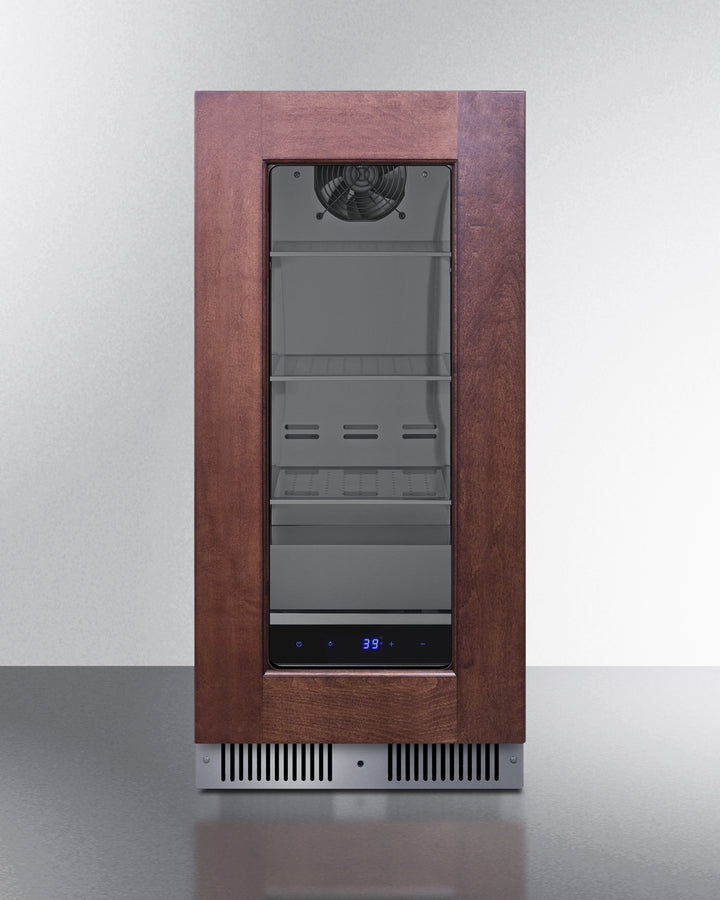

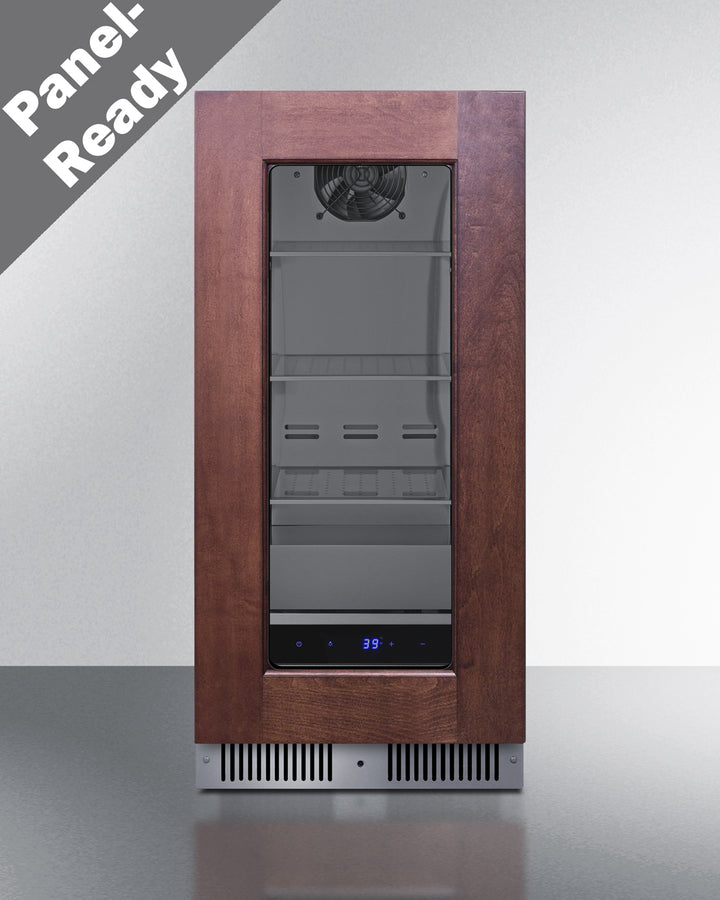

Panel-ready door trim
European style articulating door hinge and bracket kit allow easy installation of custom door trim panels to match adjacent cabinetry
Double pane tempered glass door
Elegant design offers a clear but protected view of your interior

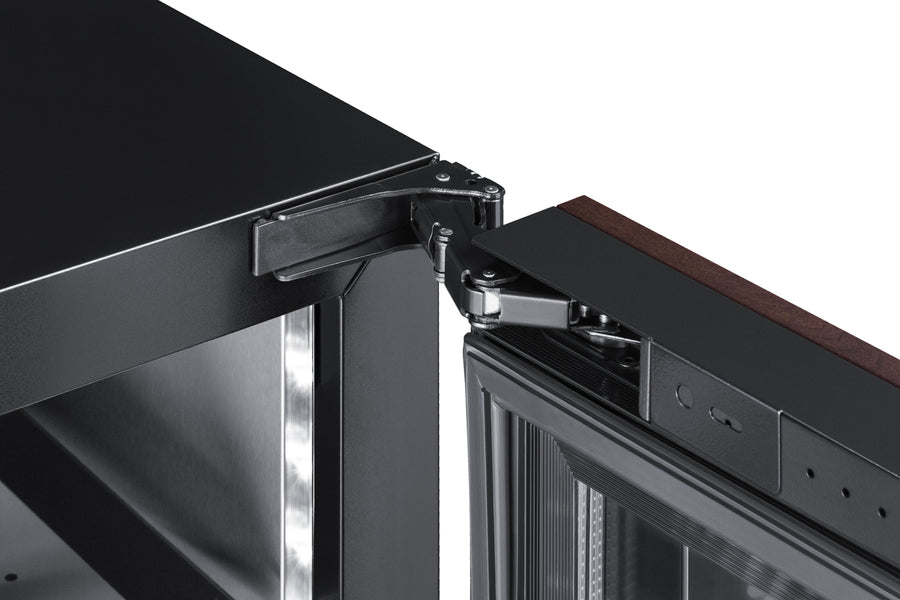

Fully articulating European style hinge
Smoother opening and a better fit with an integrated European hinge
Factory installed lock
Keyed lock for a secure interior (2 keys included)
Stainless steel interior
Walls and floor are constructed from stainless steel for added strength and easy cleanup
Frost-free operation
No-frost operation for minimum user maintenance
Digital controls
Easy-to-use digital controls allow for precise temperature settings, which is crucial for maintaining the ideal storage temperature
Angled thermostat
Thermostat’s unique internal position allows for precise temperature readouts and easier temperature management
Ideal temperature range
The unit's temperature range of 36°F to 43°F is ideal for chilling beverages
Dimmable LED light
Efficient and attractive presentation with white LED lighting strips located on each side of the cabinet that can be adjusted between three levels of brightness
Open door alarm
Alarm sounds if the door is left open for more than 60 seconds
High/low temperature alarm
Audible alarm sounds if the interior temperature rises out of set range
Sabbath mode
Optional setting lets you disable the lighting and alarm for up to 96 hours during periods of observance
Temperature memory function
Unit will retain its last settings when power is restored in the event of power loss
Internal fan
Fan-forced cooling ensures fast temperature recovery and that the unit is evenly cooled from top to bottom

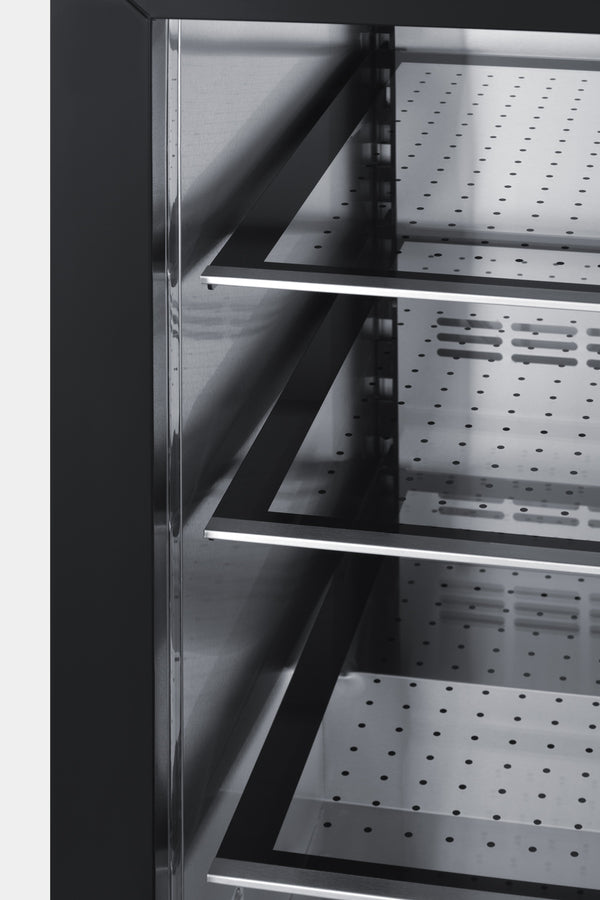

Adjustable glass shelves
Spill-proof shelving for easy cleanup and flexible storage
Fully finished black cabinet
Allows the unit to be used freestanding
Sealed back
Space-saving design with no exposed coils that offers easier cleanability
Right angle plug
Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
Quiet operation
Runs under 34 dB for a quiet performance that won't interrupt your conversation
Left-hand door swing
For this unit with a standard right-hand door swing, see model SDHG1533PNR
100% CFC free
Environmentally friendly design with no ozone-damaging chemicals
CARB compliant
Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

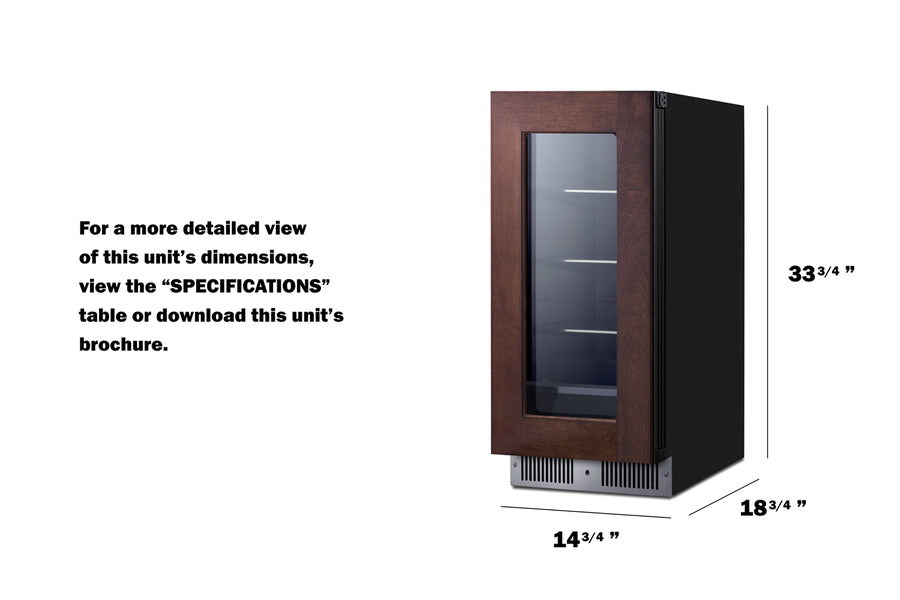

Overview
Height of Cabinet 33.75" (86 cm)
Width 14.75" (37 cm)
Depth 18.0" (46 cm)
Depth with door at 90° 32.63" (83 cm)
Capacity 1.9 cu.ft. (54 L)
Bottles 18 bottles
Defrost Type Frost-Free
Door Glass/Panel-Ready Frame
Cabinet Black
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Sanitation ETL-S
Energy Usage/Year 270.0kWh/year
Amps 1.0
Voltage/Frequency 115 V AC/60 Hz
Weight 86.0 lbs. (39 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101145747
Refrigerator Features
Sabbath Mode Yes
Door Swing LHD
Shelf Type Glass
Shelf Qty 3
Adjustable Shelves Yes
Thermostat Type Digital
Fan Type Interior and Exterior
Refrigerant Type R600a
Refrigerant Amount 0.85oz.
High Side PSI 270.0
Low Side PSI 105.0
Level Legs Qty 4
Interior Light Yes
Temperature Range 36°F to 43°F
Sound Level 33.5 dB
Dimensions
Interior Height 26.0" (66 cm)
Interior Width 10.63" (27 cm)
Interior Depth 12.25" (31 cm)
Compressor Step Height 3.75" (10 cm)
Compressor Step Width 10.63" (27 cm)
Compressor Step Depth 5.0" (13 cm)
