Summit's shallow depth series of built-in undercounter refrigeration brings full functionality to kitchen islands, wet bars, and other settings with space limitations.

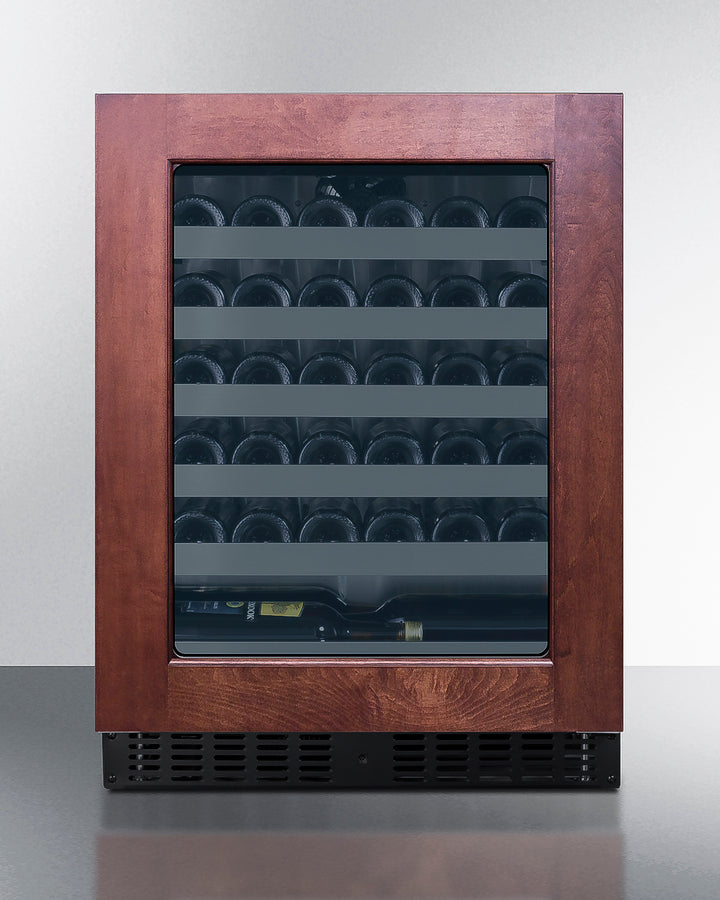

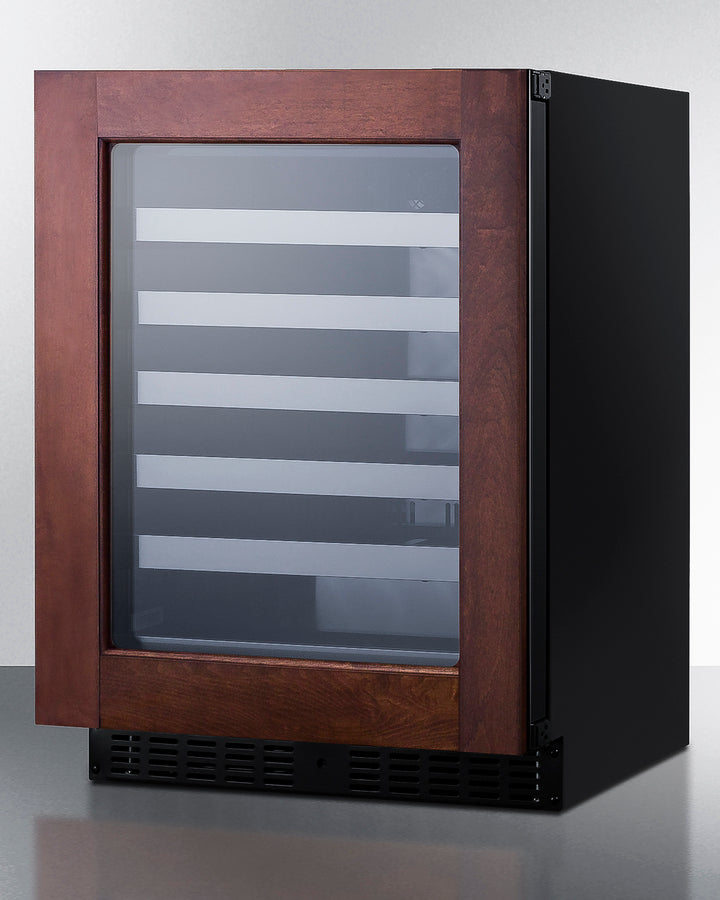

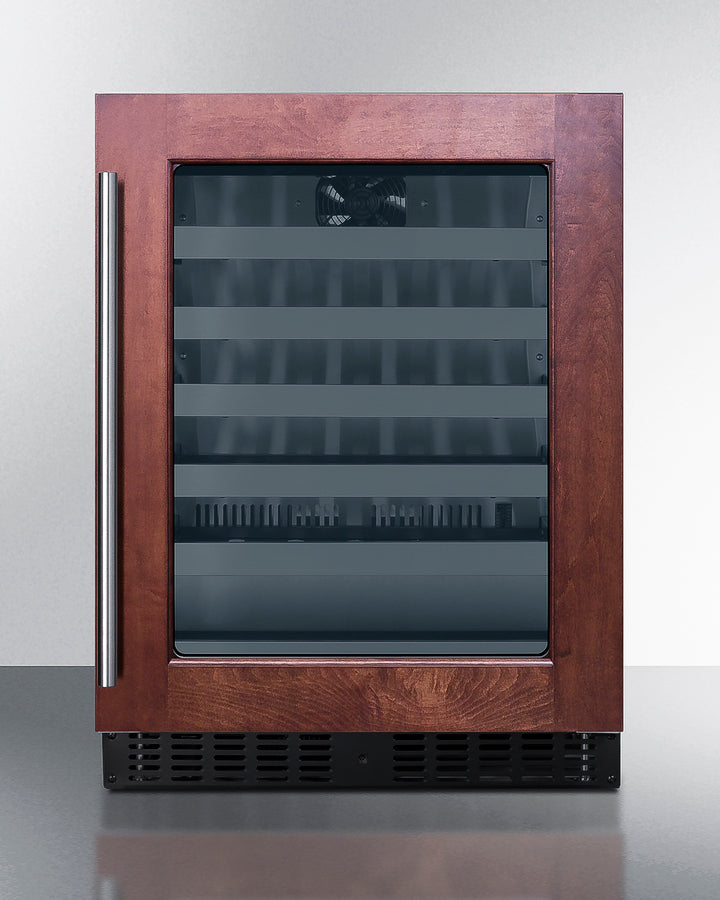

Model ASDW2412PNRLHD is a 24" wide 33-bottle single zone wine cellar sized under 18" deep. It comes in a 32" height to fit under lower ADA compliant counters, with adjustable legs and a sliding kickplate cover that also allows you to raise the overall height up to 34" to fit standard counter spaces. The front-breathing system allows built-in installation, while the fully finished black cabinet also allows freestanding use. This unit features our European style fully articulating hinge, allowing for easy installation of custom door trim panels to match your cabinetry. The sealed rear and right angle cord ensure a better fit. The door comes with a left hand swing and includes a front lock to protect your collection.
Inside, the ASDW2412PNRLHD features stainless steel construction for improved durability and sanitation. White LED lighting located in the side walls provides elegant display conditions, with dimmable levels that let you create the perfect presentation. The digital control panel lets you adjust the temperature between 41º and 64ºF to accommodate red, white, or sparkling wine. Our uniquely designed steel shelves in a jet black finish extend smoothly on ball-bearing glides, with stainless steel front trim to complete the classic look. Fan-forced cooling ensures even temperature distribution and fast temperature recovery. Additional features include an open door alarm, high temperature alarm, and Sabbath mode setting that lets you disable some of the electrical elements during periods of observance.

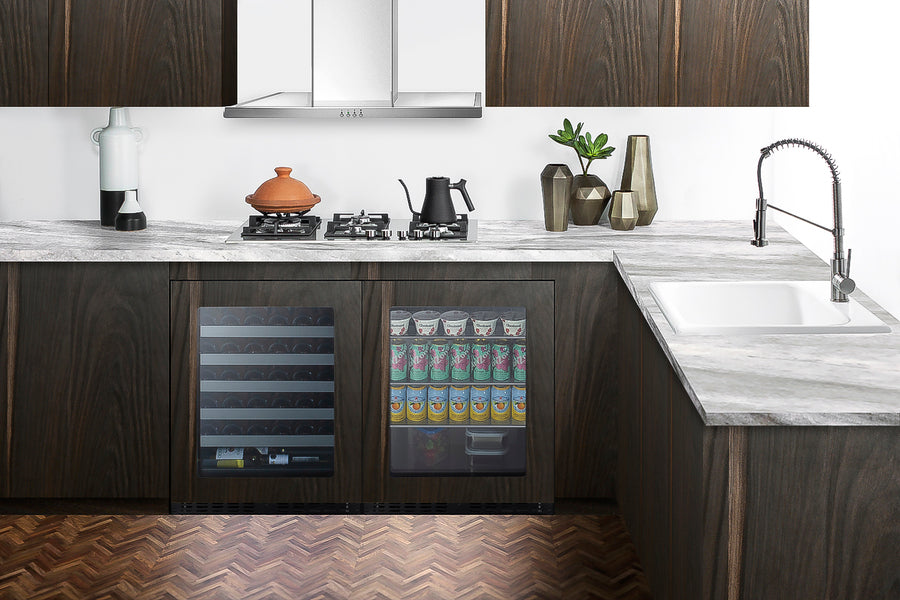

The ASDW2412PNRLHD is ETL-S listed to NSF-7 commercial standards but can also be used in the home. With its deluxe style, user-friendly features, and uniquely shallow depth, this unit offers premium value for a variety of settings. Create a matching set by pairing this with our ASDW2411PNR beverage center. Additional 18" deep choices are available in 15", 19", and 24" widths, including outdoor refrigerators, refrigerator drawers, and more.
24" wide wine cellar
Single zone wine cooler for residential or commercial cold storage
Less than 18" deep
Unique 17.75" shallow depth is ideal for wet bars, island kitchens, and other undercounter areas with limited footprint space
ADA compliant design
32" height allows easy installation under lower ADA compliant counters
Adjustable height
Leveling legs can be extended up to 2", with a slide-out kickplate that allows you to raise the overall height from 32" up to 34" if used under more standard sized cabinets
Built-in capable
Front-breathing design lets you make the best use of space by installing your appliance under the counter

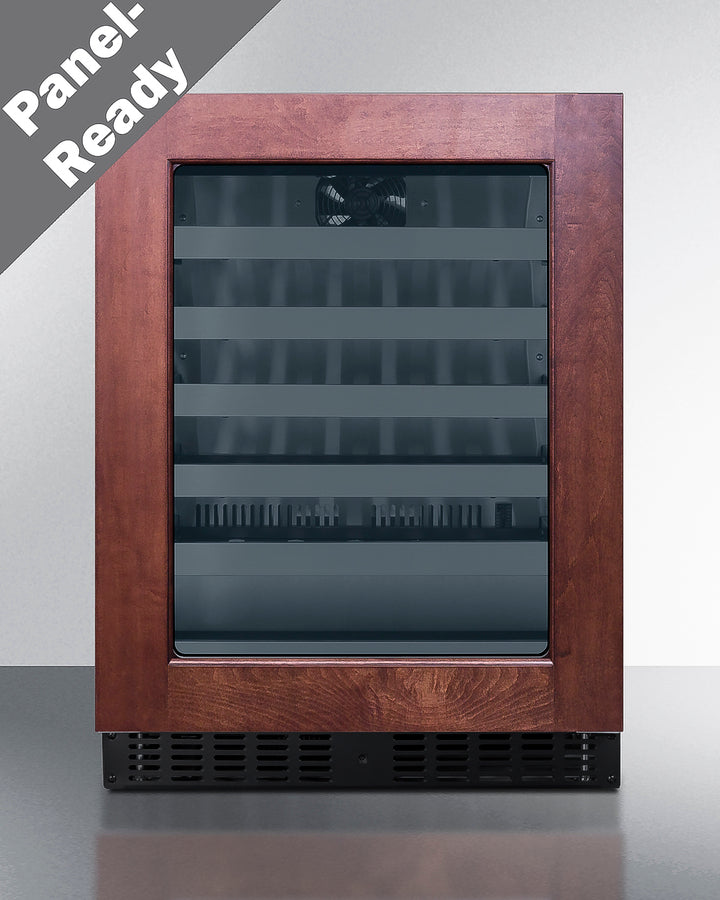

Panel-ready door
European style articulating door hinge and bracket kit allow easy installation of custom door trim panels to match adjacent cabinetry; recommended panel dimensions: 3/4" thickness at 28 1/4" H x 23 1/4" W with a 3 1/4" H x 3 1/4" W inner frame
Double pane tempered glass door
Elegant design offers a clear but protected view of your interior
Seamless stainless steel door trim
Glass is framed by with a flush one-piece stainless steel trim for an elevated look
Stainless steel interior
Walls and floor are constructed from stainless steel for added strength and easy cleanup
Factory installed lock
Keyed lock for a secure interior (2 keys included)
Digital thermostat
Electronic controls located inside the unit for precise temperature management, with a readout viewable in Celsius or Fahrenheit at the touch of a button
Dimmable LED lighting
Efficient and attractive presentation with white LED lighting strips located on each side of the cabinet that can be adjusted between three levels of brightness

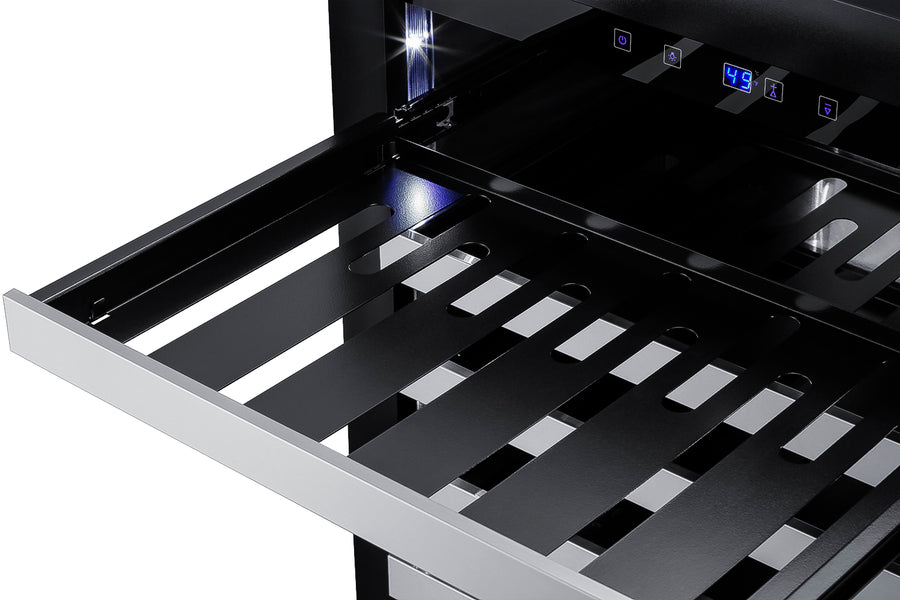

Commercial wine shelving
Removable steel shelves in a black finish with stainless steel trim for an elegant but modern look
Smooth gliding extension
Shelving is set on ball-bearing glides for a smoother extension, making it easy to load

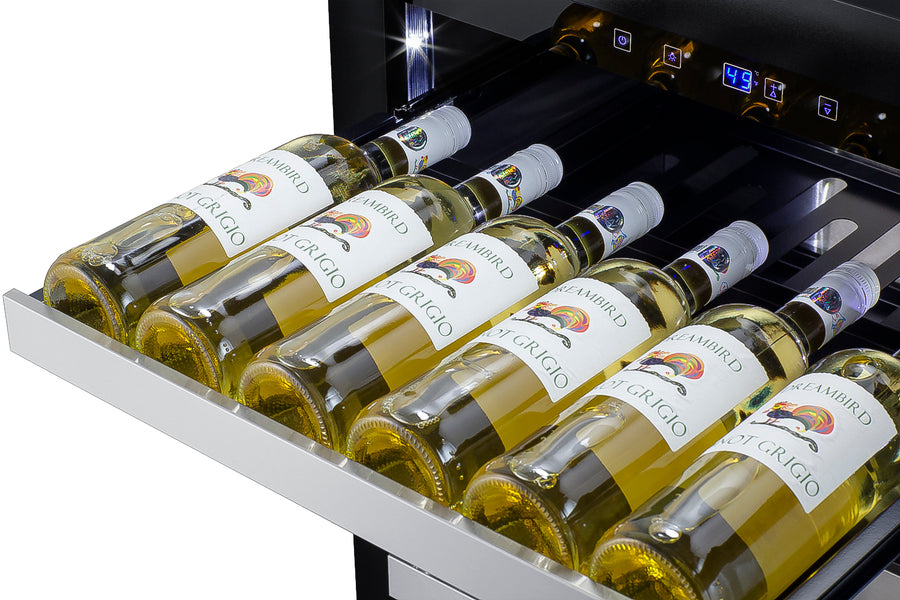

Large capacity
33-bottle capacity with five gliding shelves that can each hold up to 6 bottles, and a floor shelf to hold up to 3 bottles in a horizontal configuration (NOTE: capacity may vary depending on specific bottle style)
Frost-free operation
No-frost operation for minimum user maintenance
Internal fan
Fan-forced cooling ensures fast temperature recovery and that the unit is evenly cooled from top to bottom
Open door alarm
Audible alarm will sound if the door is left open longer than one minute
High temperature alarm
High temperature alarm sounds if the unit's interior goes out of the recommended range
Sabbath mode setting
Optional setting lets you disable the lighting and alarm for up to 48 hours
Temperature Memory Function
Unit will retain its last settings when power is restored in the event of power loss
Right angle plug
Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
Sealed back
Space-saving design with no exposed coils that offers easier cleanability
Fully articulating European style hinge
Smoother opening and a better fit with an integrated European hinge
Left hand door swing
For this unit with the door opening from the other side, see model ASDW2412PNR
Fully finished black cabinet
Allows the unit to be used freestanding
Commercially approved
ETL-S listed to NSF-7 Standards and meets UL-471 for use in commercial establishments
100% CFC Free
Environmentally friendly design with no ozone-damaging chemicals
CARB Compliant
Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
Overview
Nominal Height 32.0" (81 cm)
Height of Cabinet 32.0" (81 cm)
Nominal Width 24.0" (61 cm)
Width 23.38" (59 cm)
Nominal Depth 18.0" (46 cm)
Depth 17.75" (45 cm)
Depth with door at 90° 39.88" (101 cm)
Capacity 3.25 cu.ft. (92 L)
Defrost Type Frost-Free
Door Glass/Panel-Ready Frame
Cabinet Black
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Sanitation ETL-S
Amps 1.0
Voltage/Frequency 115 V AC/60 Hz
Weight 120.0 lbs. (54 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101104218
Wine Cellar
Number of Zones 1
Door Swing LHD
Reversible No
Height Adjustable Yes
Adjustable Shelves Yes
Shelf Type Steel
Shelf Qty 6
Thermostat Type Digital
Interior Light Yes
Fan Type Interior and Exterior
Refrigerant Type R600a
Refrigerant Amount 1.38 oz.
High Side PSI 270.0
Low Side PSI 105.0
Interior Height 1 24.25" (62 cm)
Interior Width 1 19.5" (50 cm)
Interior Depth 1 12.25" (31 cm)
Compressor Step Height 3.75" (10 cm)
Compressor Step Width 19.5" (50 cm)
Compressor Step Depth 4.5" (11 cm)
Level Legs 4
Temperature Range 41º to 64ºF
Sabbath Mode Yes
Sound Level 32.6 dB
Door
T2 Door Tint T1 Door Tint
T1S Door Tint T4 Door Tint
T3 Door Tint
