Summit's assortment of undercounter beverage centers includes uniquely sized 18" wide choices designed for reliable storage in commercial environments.

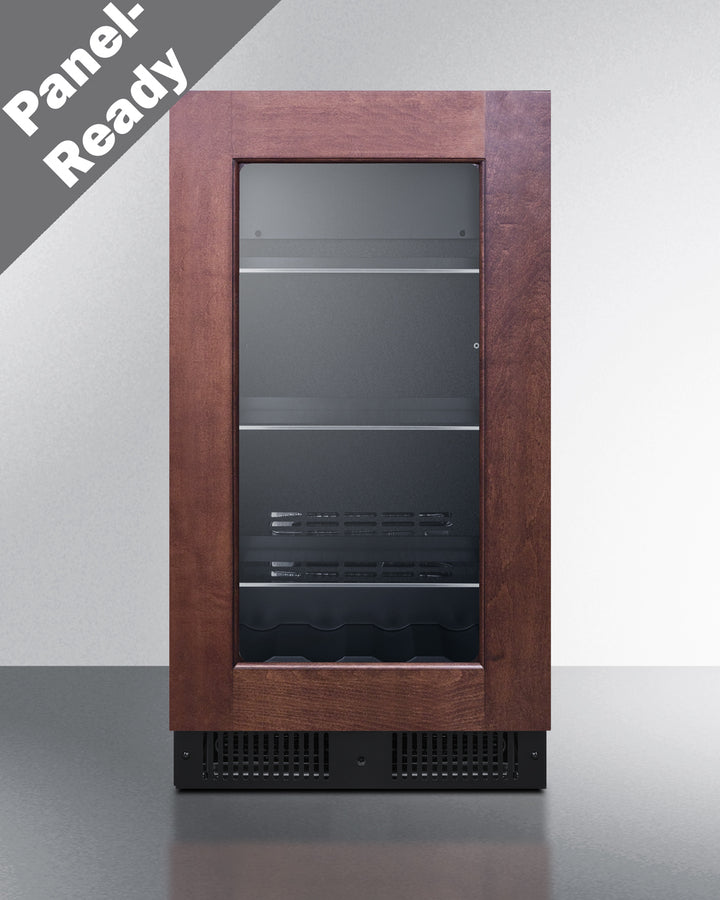

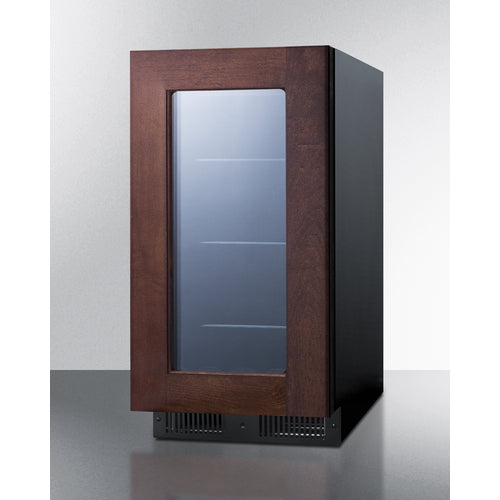

The CL181WBVPNRLHD is an 18" wide beverage center that is ETL-S listed to NSF-7 commercial standards. The front breathing design allows built-in installation under counters, while the fully finished cabinet in a jet black finish also enables freestanding use. This unit includes a fully articulating European-style hinge and 2-piece bracket kit that lets you easily install overlay panels over the door trim to create a custom look. The double pane tempered glass door provides a full view of stored contents. Inside, white LED lighting located on the side walls complements the black interior for an attractive presentation that highlights stored products.

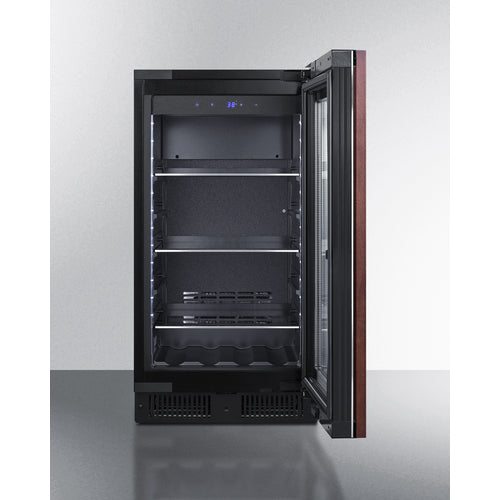

The CL181WBVPNRLHD includes three adjustable glass shelves for spill-proof storage. The floor is specially slotted to hold wine bottles in place. The interior control panel includes a digital thermostat for easy and intuitive operation, with a readout viewable in Celsius or Fahrenheit. Additional features include a right angle plug for added space savings, sealed back design for easier cleanup, and a Sabbath mode setting. A built-in alarm audibly warns if the door is left ajar or if the unit exceeds recommended temperature, an ideal feature for busy commercial settings.
Uniquely styled and fully featured, the CL181WBVPNRLHD is an elegant solution to bringing reliable beverage storage to restaurants, bars, waiting areas, hotel lobbies, and other spaces. For a matching wine cellar, see CL18WCPNR.
18" Wide Beverage Center
Undercounter glass door beverage refrigerator for built-in or freestanding use
Commercially approved
ETL-S listed to NSF-7 Standards and meets UL-471 for use in commercial establishments
Built-in capable
Front-breathing design lets you make the best use of space by installing your appliance under the counter
Panel-ready door trim
European style articulating door hinge and 2-piece bracket kit allow easy installation of custom door trim panels to match adjacent cabinetry; recommended panel dimensions: 3/4" thickness at 30" H x 17 3/8" W with a 3 1/4" H x 3 1/4" W inner frame
Double pane tempered glass door
Heat-safe glass ensures your items are stored safely
Popular commercial applications

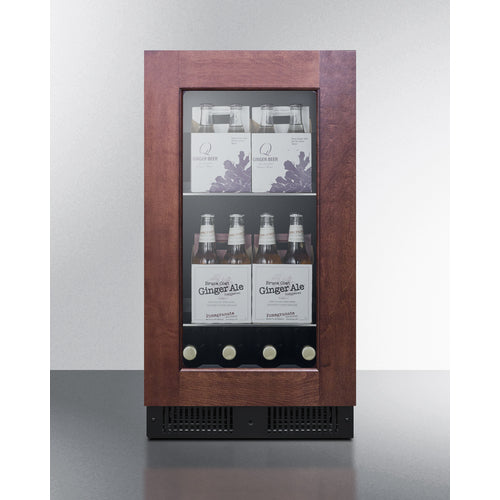

Perfectly designed to store and display beverages in a variety of commercial settings, including energy drinks and water bottles in gyms, refreshments in lobbies, sparkling water and juices in restaurants, and much more
Digital thermostat
Electronic controls for precise temperature management
Digital display
Temperature readout can be shown in Celsius or Fahrenheit
Adjustable glass shelves
Spill-proof glass shelves make it easy to store and display bottles and cans
Bottle slots
Floor is specially slotted to store wine and other bottles safely in place
White LED lighting
Unique white lighting located inside the walls offers elegant illumination for the jet black interior
Professional handle
Vertically mounted handle in brushed stainless steel
Left hand door swing
For this unit with the door opening from the other side, see model CL181WBVPNR
Factory-installed lock
Keyed lock located in the kickplate for optional security
Sabbath Mode
Optional setting lets you disable the lighting and alarm for up to 48 hours
Temperature alarm
Audibly alerts if the interior temperature is too warm
Open door alarm
Audible alarm will sound if the door is left ajar for over 60 seconds
Fan-forced cooling
Internal fan ensures the interior is evenly cooled from top to bottom
Automatic defrost
Reduced maintenance and steady temperature performance
Sealed back
Space saving design with easier cleanability
Temperature Memory Function
Unit will retain its last settings when power is restored in the event of power loss
Right angle plug
Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
Fully finished black cabinet
Allows the unit to be used freestanding
Fully articulating European style hinge
Smoother opening and a better fit with an integrated European hinge
100% CFC Free
Environmentally friendly design with no ozone-damaging chemicals
CARB Compliant
Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
Overview
Nominal Height 34.0" (86 cm)
Height of Cabinet 33.75" (86 cm)
Nominal Width 18.0" (46 cm)
Width 17.5" (44 cm)
Nominal Depth 24.0" (61 cm)
Depth 22.75" (58 cm)
Depth with Handle 25.38" (64 cm)
Depth with Panel 23.5" (60 cm)
Depth with door at 90° 39.63" (101 cm)
Capacity 2.9 cu.ft. (82 L)
Defrost Type Automatic
Door Glass/Panel-Ready Frame
Cabinet Black
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Sanitation ETL-S
Energy Usage/Year 255.0kWh/year
Amps 1.0
Voltage/Frequency 115 V AC/60 Hz
Weight 88.0 lbs. (40 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101145648
Refrigerator Features
Sabbath Mode Yes
Door Swing LHD
Reversible No
Shelf Type Glass
Shelf Qty 3
Adjustable Shelves Yes
Thermostat Type Digital
Fan Type Interior and Exterior
Refrigerant Type R600a
Refrigerant Amount 0.85oz.
High Side PSI 270.0
Low Side PSI 105.0
Interior Light Yes
Temperature Range 36 to 43ºF
Dimensions
Interior Height 23.0" (58 cm)
Interior Width 12.25" (31 cm)
Interior Depth 17.5" (44 cm)
Compressor Step Height 3.25" (8 cm)
Compressor Step Width 12.25" (31 cm)
Compressor Step Depth 5.25" (13 cm)
Exterior
Latch - Factory-installed latch requires manual release to open unit (NOTE: adds 1 1/2" of width)
Door
T1 Door Tint T2 Door Tint
T3 Door Tint T4 Door Tint
T1S Door Tint
