SUMMIT brings quality and value under the counter with the industry’s largest collection of ADA compliant built-in refrigeration. The CT661BIADA Series features residential refrigerator-freezers made in Europe and designed for reliable cold storage under lower ADA counters.

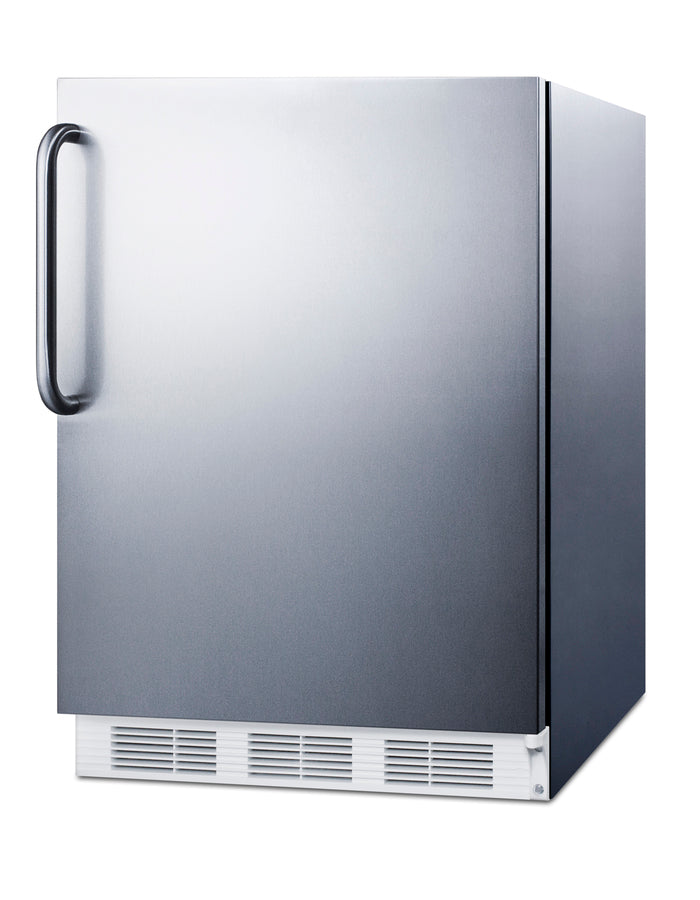

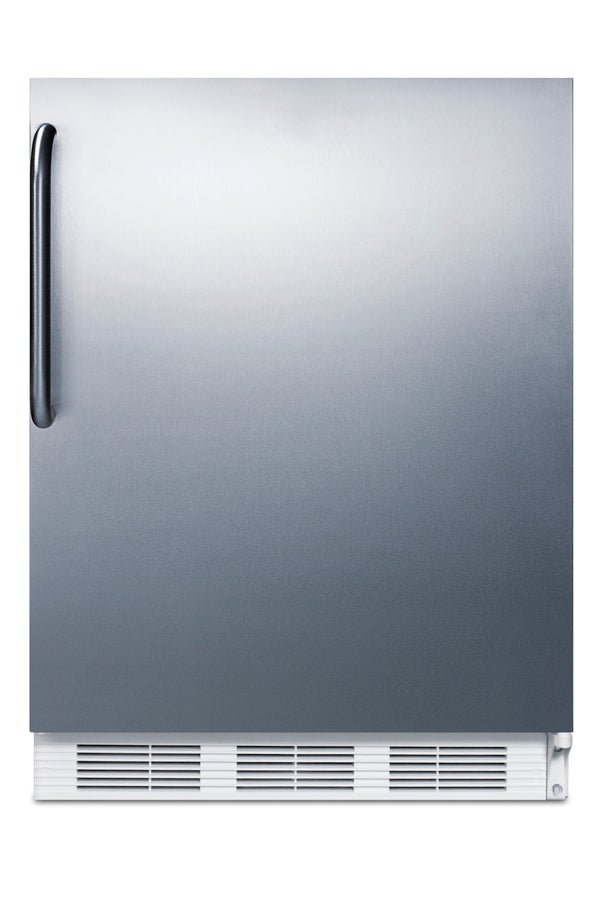

Sized with a 24” footprint, the CT661WCSSADA refrigerator-freezer offers a generous 5.1 cu.ft. storage capacity, larger than many units in this size class. The 32” height and front-breathing design makes it ideal for installation under lower counters complying with ADA guidelines for height restriction. The fully finished cabinet also enables freestanding use. This unit comes with a fully wrapped stainless steel door and cabinet. A curved towel bar handle in brushed stainless steel completes the professional look.

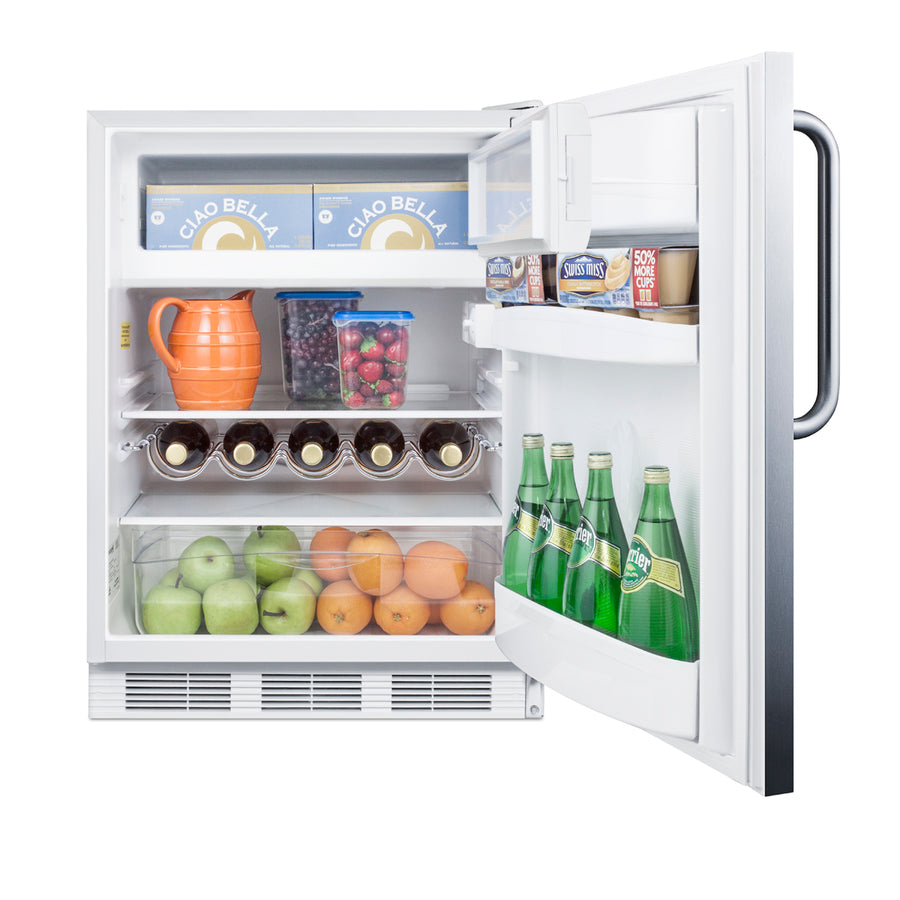

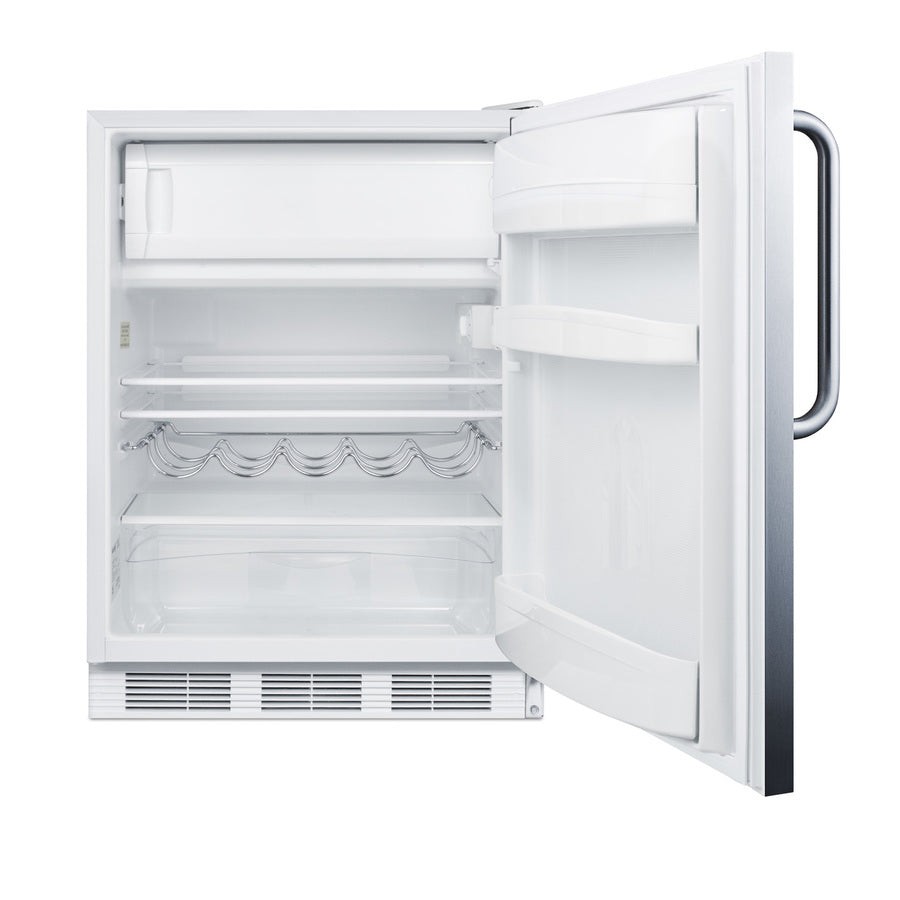

Inside, the CT661WCSSADA features a dual evaporator to allow separated cooling of the fresh and frozen food sections. The refrigerated compartment utilizes low maintenance automatic defrost, while the interior freezer compartment is manual defrost to achieve lower storage temperatures ideal for ice cream and other frozen food. The deluxe interior includes adjustable glass shelves for spill-proof storage and easier cleaning, as well as a scalloped wine shelf to hold wine and champagne bottles safely in place. Door racks offer additional convenience for tall bottles and condiments and a clear crisper drawer ensures your produce is stored under the ideal conditions. These models include automatic interior lighting and an adjustable dial thermostat.
With its ideal dimensions and user-friendly features, the CT661WCSSADA is the perfect refrigerator-freezer for any ADA compliant setting in need of versatile storage under the counter.
ADA compliant
32" high to fit under lower ADA compliant counters
Built-in capable
Make the best use of space by installing your appliance under the counter
Slim undercounter dimensions
Ideal 24" footprint offers full 5.1 cu.ft. storage capacity in a slim fit
Complete stainless steel exterior
Door and cabinet are fully wrapped in durable stainless steel for a professional look built to last
Professional towel bar handle
Curved handle in brushed stainless steel offers a sturdy grip with professional elegance
Cycle defrost
This system utilizes user-friendly automatic defrost operation in the fresh food section and efficient manual defrost operation in the freezer compartment
Dual evaporator
Our unique and efficient design separately cools the refrigerator while maintaining a lower temperature in the freezer compartment by utilizing two evaporators
Adjustable glass shelves
Rearrange refrigerator space to accommodate all sizes or remove shelves for simple cleanup
Door storage
Store tall bottles and condiments right on the door for convenient access
Wine shelf
Removable scalloped wine shelf is included to store champagne and wine bottles
Clear crisper drawer
Get the longest life and best taste out of produce by storing greens in a bottom crisper
Interior light
Automatically illuminates when you open the door
Hidden evaporator
Cold wall design with hidden evaporator creates a seamless, easy to clean interior
Adjustable thermostat
Dial thermostat located inside for easy temperature management
Fully finished cabinet
Allows the unit to be used freestanding
100% CFC Free
Environmentally friendly design with no ozone-damaging chemicals
CARB Compliant
Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
Overview
Nominal Height 32.0" (81 cm)
Height of Cabinet 32.0" (81 cm)
Height to Hinge Cap 32.38" (82 cm)
Nominal Width 24.0" (61 cm)
Width 23.63" (60 cm)
Nominal Depth 23.0" (58 cm)
Depth 23.0" (58 cm)
Depth with door at 90° 45.38" (115 cm)
Capacity 5.1 cu.ft. (144 L)
Defrost Type Cycle
Door Stainless Steel
Cabinet Stainless Steel
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Energy Usage/Year 365.0kWh/year
Amps 1.4
Voltage/Frequency 115 V AC/60 Hz
Weight 110.0 lbs. (50 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101068411
Refrigerator-Freezer
Door Swing RHD
Reversible Factory Reversible
Adjustable Shelves Yes
Crisper Qty 1
Crisper Finish Transparent
Crisper Cover Glass
Wine Bottle Shelving Yes
Interior Light Yes
Refrigerator - Interior Height 18.0" (46 cm)
Refrigerator - Interior Width 21.0" (53 cm)
Refrigerator - Interior Depth 18.0" (46 cm)
Refrigerator - Capacity 4.5 cu.ft
Refrigerator - Shelf Type Glass
Refrigerator - Shelf Qty 2
Refrigerator - Full Door Shelves 3
Freezer - Interior Height 5.25" (13 cm)
Freezer - Interior Width 19.0" (48 cm)
Freezer - Interior Depth 11.5" (29 cm)
Freezer - Capacity 0.6 cu.ft
Thermostat Type Dial
Refrigerant Type R600a
Refrigerant Amount 0.92 oz.
High Side PSI 180.0
Low Side PSI 80.0
Compressor Step Height 5.5" (14 cm)
Compressor Step Width 21.0" (53 cm)
Compressor Step Depth 6.0" (15 cm)
Exterior
SSK - Stainless steel kickplate SS Hinges
DL2B - Factory installed NIST calibrated digital data logger (DDL) PH - Probe Hole
LHD - Left hand door swing Latch - Factory-installed latch requires manual release to open unit (NOTE: adds 1 1/2" of width)
HG - Hospital grade cord Alarm/Thermometer - Factory-installed alarm with external temperature readout
Door
CDY-Saffron gold door wrap CDP-Lavender purple door wrap
CDG-Emerald green door CDB-Cobalt blue door wrap
STO-Step-To-Open Door Pedal
Handle
TBC Copper Towel Bar Handle Upgrade AMHandle - Antimicrobial handle
Lock
L-SideLock KEYPAD - Battery-powered keypad door lock
AC Keypad - AC powered keypad lock
