Summit offers a unique selection of built-in capable full-sized wine cellars with a versatile luxury design ideal for residential or commercial use

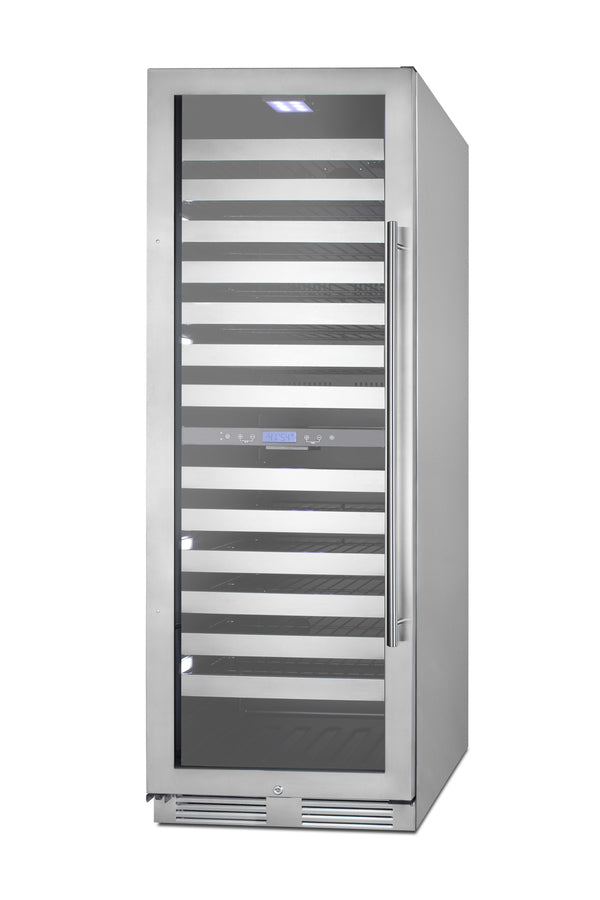

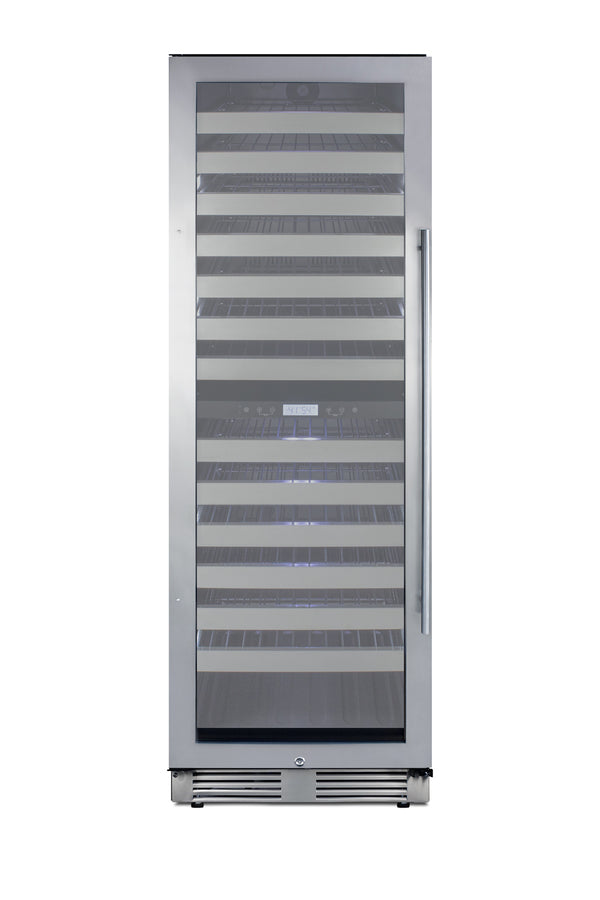

The SWCP2163CSSLHD is a 24" wide dual zone wine cellar that is ETL-S listed to NSF-7 commercial standards. The upper zone is reserved for white and sparkling wine, while the lower zone features a warmer temperature range to best preserve reds. It features a front-breathing design for built-in installation, with a fully finished stainless steel cabinet that also allows freestanding use. Sized just under 27" deep, this unit has a sealed back and right angle plug for added depth savings. The luxury exterior features a double pane tempered glass door with a seamless stainless steel trim. A stainless steel kickplate provides added elegance, while the pro-style handle completes the look. This unit includes a factory-installed keyed lock for added security and powerful magnetic gaskets to ensure a proper seal in high-traffic commercial settings. This unit comes with a left-hand door swing. (Note: the door is not user-reversible. For this unit with a right-hand door swing, see the SWCP2163CSS.)

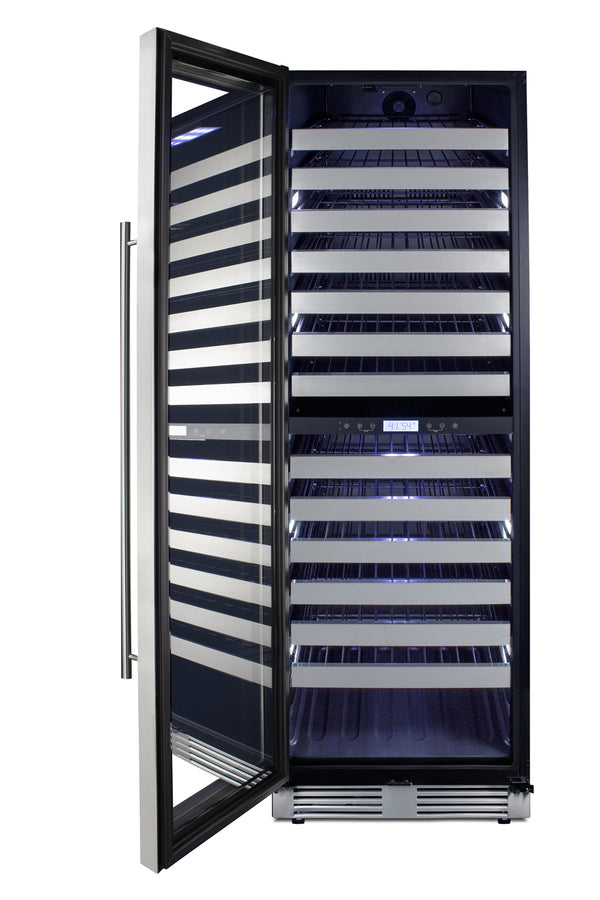

Inside, the SWCP2163CSSLHD includes 13 full-extension black wire shelves positioned on ball bearing glides for smooth loading. Stainless steel fronts offer a modern touch. Optimal storage capacity accommodates up to 163 standard 750ml Bordeaux bottles (note: your capacity may vary depending on the bottle style). For wider Burgundy style bottles (typically used for Pinot Noir and Chardonnay), the SWCP2163CSS can hold up to 110 bottles. Nine white LED lights positioned on the sides and top of the unit attractively illuminate your collection for a stylish display. An internal fan ensures both zones are properly chilled, while a charcoal filtration system keeps the interior odor-free. Additional features include an open door alarm and high/low temperature alarm that sound if the unit temperature goes out of range.
With its convenient size, advanced features, and luxury design, the SWCP2163CSSLHD is perfect for restaurants, bars, wineries, homes seeking full capacity wine storage with a modern presentation.
Commercially approved
ETL-S listed to NSF-7 standards for use in restaurants, bars, and other foodservice settings
Built-in capable
Front-breathing design allows the unit to be integrated with minimum clearance for a flush look (fits in spaces sized at 70.75" H x 23.88"W x 28" D)
Double pane tempered glass door
Provides a full display of the interior, with two levels of glass for added protection
Seamless stainless steel door frame
Single-piece door trim offers a more deluxe look
Two temperature zones
Chill white wine in the upper zone while preserving your reds at a warmer temperature below

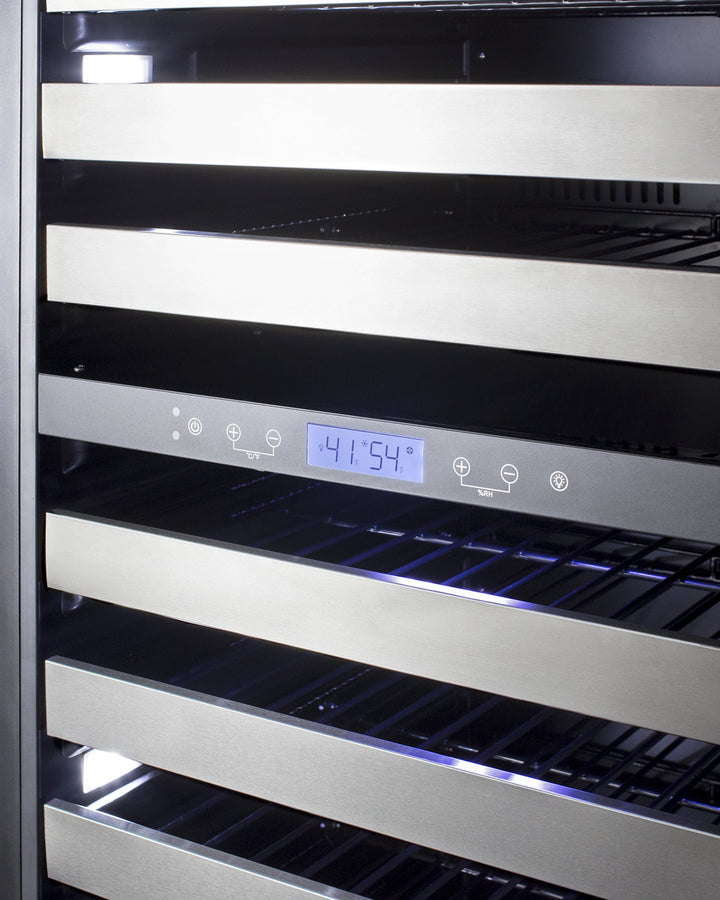

Digital thermostat
Located inside the unit, the electronic thermostat allows easy temperature adjustment with a display in Celsius or Fahrenheit

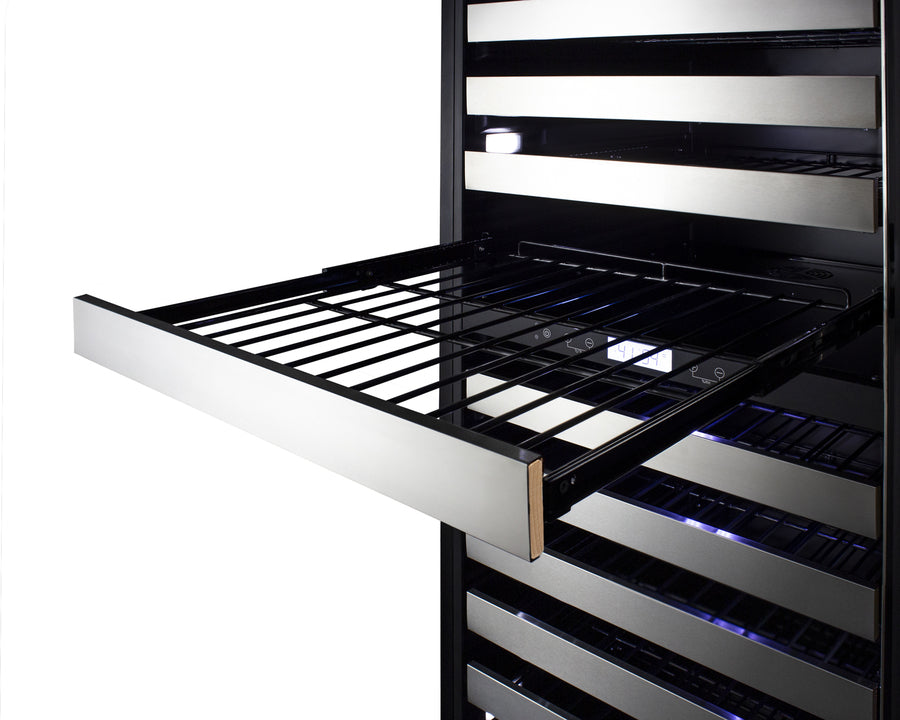

Full-extension wire shelving
13 shelves on ball-bearing glides glide out smoothly for easier loading and optimum capacity
Stainless steel trimmed shelving
Fronts feature a stainless steel accent to elevate your presentation
Versatile storage

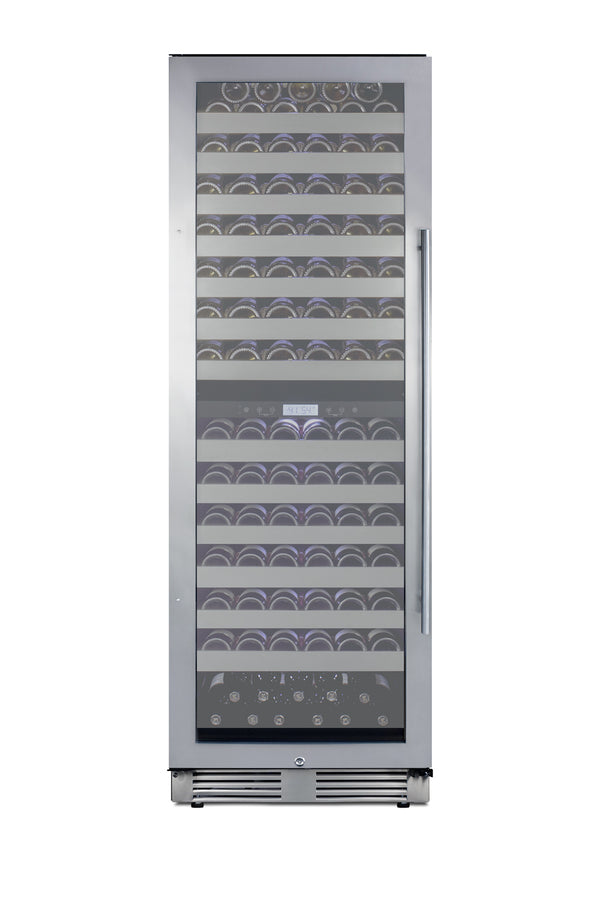

Interior can hold up to 163 standard 750ml Bordeaux style bottles (20 bottles stacked on the upper shelf, 11 bottles per middle 12 shelves, and 11 on the slotted floor). If storing wider Burgundy style bottles (typically used for Pinot Noir or Chardonnay), you can accommodate up to 110 bottles (8 per shelf with 6 stacked on the slotted floor)
Professional handle
37" long handle in a brushed stainless look offers the perfect finish to your wine cellar
LED lighting
Nine LED lights provide an attractive and energy-efficient illumination of your collection with a gentle white hue
Factory-installed lock
Keyed lock secures both zones (2 keys included)
Temperature range
Upper zone: 41-54°F ideal for chilling white and sparkling wine; Lower zone: 54-65°F for holding reds at a warmer temperature
Stainless steel kickplate
Allows for front ventilation in an elegant design
Charcoal filtration system
Helps to purify air for an odor-free interior
High/low temperature alarms
Audibly sounds if the interior rises or falls out of recommended range
Open door alarm
Alerts if unit door is ajar for more than 5 minutes
Magnetic door gasket
Ensures a tight seal for energy savings and improved performance
Sealed back
Flush back allows for a better fit and easier cleanability
Right angle plug
Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
Left-hand door swing
This unit comes with a left-hand door swing. (Note: the door is not user-reversible; for a right-hand door swing, see the SWCP2163CSS)
CARB compliant
Uses environmentally friendly R600a refrigerant to comply with current regulations
Fully finished stainless steel cabinet
Allows the unit to be used freestanding
100% CFC free
Environmentally friendly design with no ozone-damaging chemicals
CARB Compliant
Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
Overview
Nominal Height 70.0" (178 cm)
Height of Cabinet 69.5" (177 cm)
Nominal Width 24.0" (61 cm)
Width 23.63" (60 cm)
Nominal Depth 27.0" (69 cm)
Depth 26.5" (67 cm)
Depth with Handle 28.25" (72 cm)
Depth with door at 90° 48.75" (124 cm)
Bottles 163 bottles
Defrost Type Automatic
Door Glass
Cabinet Stainless Steel
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Sanitation ETL-S
Amps 2.0
Voltage/Frequency 115 V AC/60 Hz
Weight 299.0 lbs. (136 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101079295
Wine Cellar
Number of Zones 2
Door Swing LHD
Reversible No
Shelf Type Wire
Shelf Qty 13
Thermostat Type Digital
Interior Light Yes
Fan Type Interior and Exterior
Refrigerant Type R600a
Refrigerant Amount 1.76 oz.
High Side PSI 320.0
Low Side PSI 120.0
Interior Height 1 31.0" (79 cm)
Interior Width 1 20.38" (52 cm)
Interior Depth 1 21.0" (53 cm)
Level Legs 2
Temperature Range 41-54°F (upper zone); 54-65°F (lower zone)
Interior Height 2 29.75" (76 cm)
Interior Width 2 20.38" (52 cm)
Interior Depth 2 21.0" (53 cm)
Sound Level 34 dB
Door
T4F Door Tint T3F Door Tint
T2F Door Tint T1SF Door Tint
