SUMMIT's ADA compliant line of 24" wide built-in refrigerators brings quality and style to residential and commercial settings with space restraints.

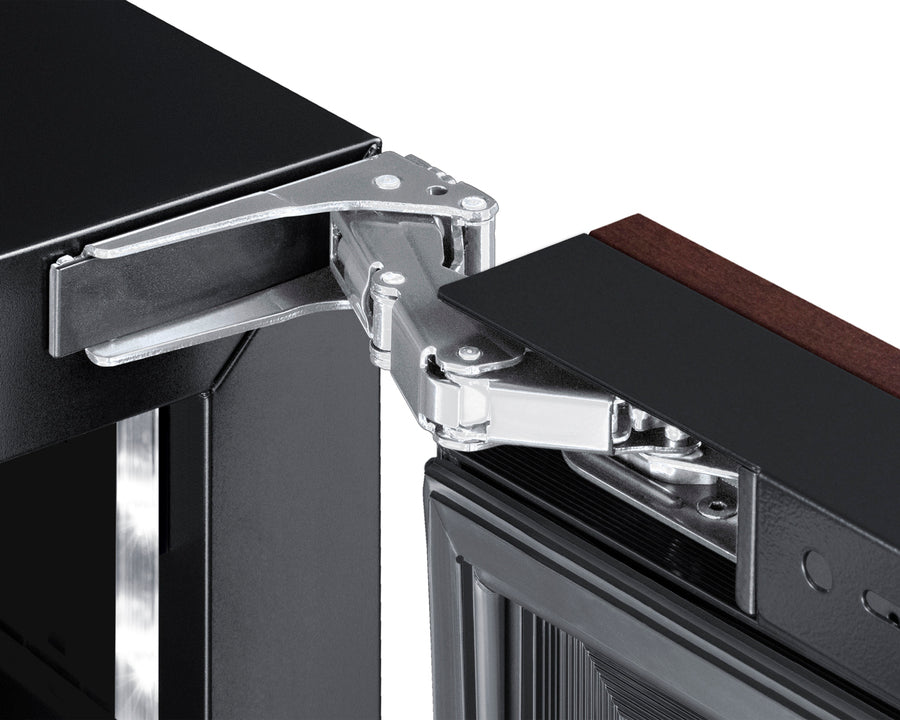

Model AL57GPNR is a 32" high beverage center designed for built-in or freestanding use under lower ADA compliant counters. The reversible glass door features a seamless stainless steel trim and two included brackets that let you customize the look to best match adjacent cabinetry (recommended panel dimensions: 28.34" H x 23.4" W with a 3 1/4" H x 3 1/4" W frame; panel thickness: 3/4"). The European style fully articulating hinge ensures the door opens in its own radius. A factory-installed lock offers additional security, while the sealed rear and right angle plug provide added space savings.
Inside, the AL57GPNR utilizes frost-free operation with fan-forced cooling to ensure low maintenance and even temperature distribution. Recessed LED lighting offers an attractive yet efficient look. The digital thermostat makes it easy to manage the interior temperature. This unit includes adjustable glass shelves for flexible, spill-proof storage. The floor is specially slotted to hold bottles in place. Additional features include an open door alarm, high temperature alarm, and Sabbath mode setting that lets you disable some of the electrical elements during periods of observance.
The AL57GPNR refrigerator is ETL-S listed to NSF-7 commercial standards but can also be used in the home. With its deluxe style and user-friendly features, this unit is the perfect choice for home or commercial kitchens.
Note: Panel is not included. The images provided are meant only to be suggestive of what the product with a wood panel installed could look like. Users must supply their own wood panel.
24" Wide Undercounter Beverage Center
Glass door refrigerator sized at 32" high for built-in or freestanding use in ADA compliant residential or commercial settings
ADA compliant design
32" height allows easy installation under lower ADA compliant counters
Built-in capable
Front-breathing design lets you make the best use of space by installing your appliance under the counter
Commercially approved
ETL-S listed to NSF-7 Standards and meets UL-471 for use in commercial establishments
Panel-ready door trim
European style articulating door hinge and bracket kit allow easy installation of custom door trim panels to match adjacent cabinetry; recommended panel dimensions: 28.34" H x 23.4" W with a 3 1/4" H x 3 1/4" W frame; panel thickness: 3/4"
Stainless steel door trim
Fully finished door trim also allows you to choose a traditional stainless steel and glass front if not installing an overlay panel
Double pane tempered glass door
Stainless steel trimmed glass door offers a heat-safe view of the interior
Factory installed lock
Keyed lock for a secure interior
Frost-free operation
No-frost operation for minimum user maintenance
Digital thermostat
Electronic controls located inside the unit for precise temperature management
Recessed LED light
Efficient and attractive presentation with LED lighting
Adjustable glass shelves
Rearrange refrigerator space to accommodate all sizes or remove shelves for simple cleanup
Bottle slots
Floor is specially slotted to store wine and other bottles safely in place
Internal fan
Fan-forced cooling ensures the unit is evenly cooled from top to bottom
Factory-reversible door swing
Door ships with a right hand door swing. For a left hand version, add option "LHD"
Open door alarm
Audible alarm will sound if the door is left open longer than one minute
High temperature alarm
High temperature alarm sounds if the unit's interior goes out of the recommended range
Sabbath mode setting
Optional setting lets you disable the lighting and alarm for up to 48 hours
Temperature Memory Function
Unit will retain its last settings when power is restored in the event of power loss
Sealed back
Space-saving design that offers easier cleanability
Right angle plug
Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
Fully finished black cabinet
Allows the unit to be used freestanding
100% CFC Free
Environmentally friendly design with no ozone-damaging chemicals
CARB Compliant
Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
Overview
Nominal Height 32.0" (81 cm)
Height of Cabinet 32.0" (81 cm)
Nominal Width 24.0" (61 cm)
Width 23.38" (59 cm)
Nominal Depth 23.0" (58 cm)
Depth 22.75" (58 cm)
Depth with door at 90° 46.0" (117 cm)
Capacity 4.63 cu.ft. (131 L)
Defrost Type Frost-Free
Door Glass/Panel-Ready Frame
Cabinet Black
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Sanitation ETL-S
Energy Usage/Year 290.0kWh/year
Amps 1.0
Voltage/Frequency 115 V AC/60 Hz
Weight 95.0 lbs. (43 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101065922
Refrigerator Features
Sabbath Mode Yes
Door Swing RHD
Reversible Yes
Shelf Type Glass
Shelf Qty 3
Adjustable Shelves Yes
Thermostat Type Digital
Fan Type Interior and Exterior
Refrigerant Type R600a
Refrigerant Amount 0.99oz.
High Side PSI 270.0
Low Side PSI 105.0
Level Legs Qty 4
Interior Light Yes
Temperature Range 36 to 43ºF
Sound Level 33.6 dB

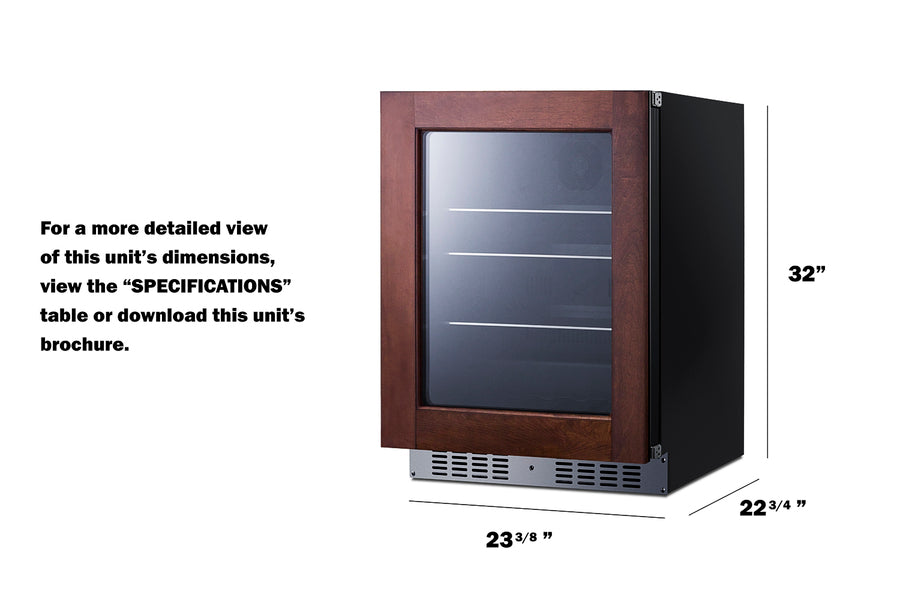

Dimensions
Interior Height 24.38" (62 cm)
Interior Width 20.0" (51 cm)
Interior Depth 16.75" (43 cm)
Compressor Step Height 3.25" (8 cm)
Compressor Step Width 20.0" (51 cm)
Compressor Step Depth
Door
T1S Door Tint T4 Door Tint
T3 Door Tint T2 Door Tint
T1 Door Tint
Exterior
LHD - Left hand door swing Latch - Factory-installed latch requires manual release to open unit (NOTE: adds 1 1/2" of width)
