Summit's shallow depth series of built-in undercounter refrigeration brings full functionality to kitchen islands, wet bars, and other settings with space limitations.

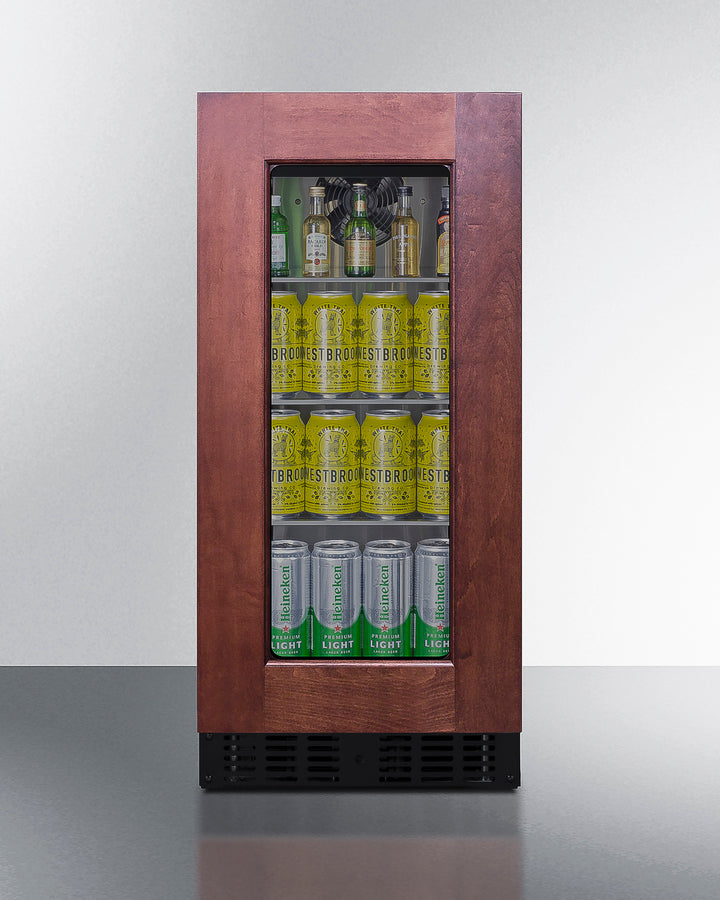

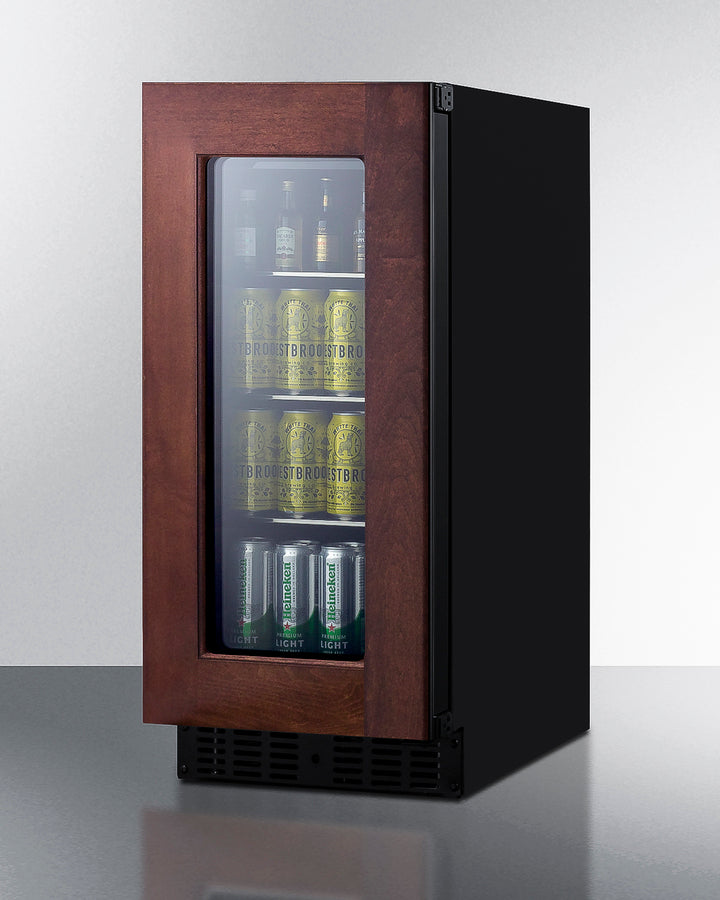

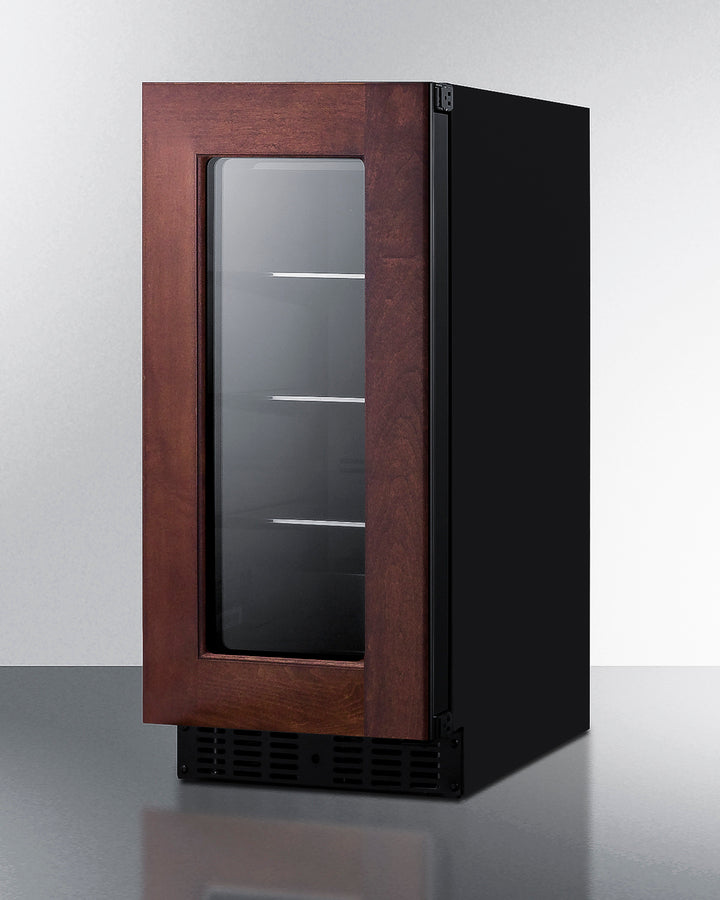

Model ASDG1521PNR is a 15" wide beverage refrigerator sized under 18" deep. It comes in a 32" height to fit under lower ADA compliant counters, with adjustable legs and a sliding kickplate cover that also allows you to raise the overall height up to 34" to fit standard counter spaces. The front-breathing system allows built-in installation, while the fully finished black cabinet also allows freestanding use. This unit features our European style fully articulating hinge, allowing for easy installation of custom door trim panels to match your cabinetry. The sealed rear and right angle cord ensure a better fit. The door is user-reversible and includes a front lock to protect your stored items.

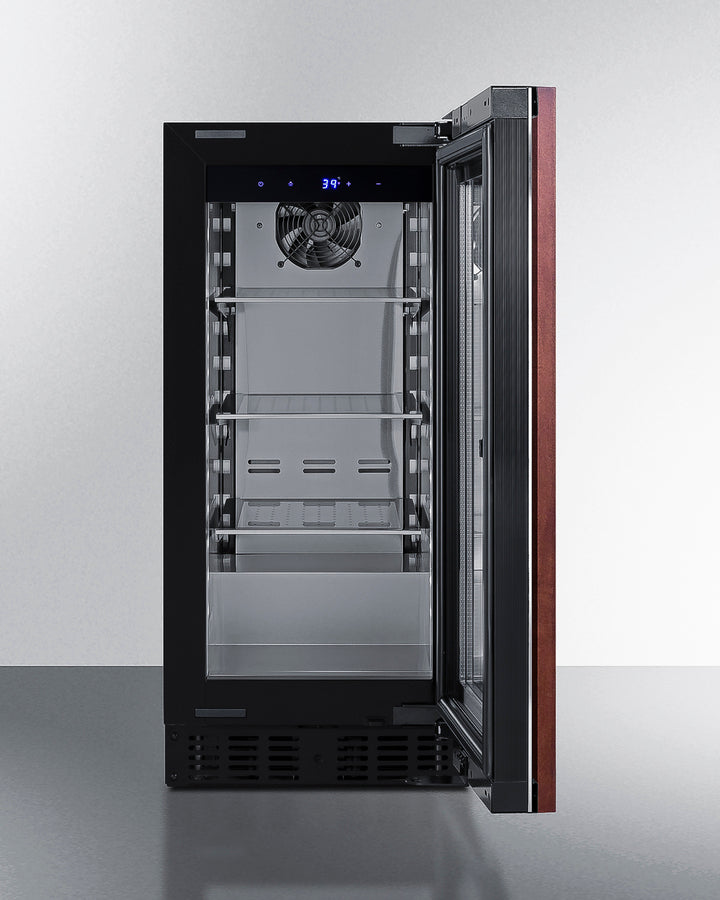

Inside, the ASDG1521PNR features stainless steel construction for improved durability and sanitation. Fan-forced cooling ensures even temperature distribution and fast temperature recovery. This unit includes an LED strip on each side of the interior cabinet, with dimmable settings in a gentle white hue that lets you create the perfect display conditions. A commercial grade cantilevered shelving system with glass shelves ensures flexible storage to accommodate any size. Additional features include an open door alarm, high temperature alarm, and Sabbath mode setting that lets you disable some of the electrical elements during periods of observance.
The ASDG1521PNR is ETL-S listed to NSF-7 commercial standards but can also be used in the home. With its deluxe style, user-friendly features, and uniquely shallow depth, this unit offers premium value for a variety of settings. Create a matching set by pairing this with our ASDW1522PNR wine cellar. Additional 18" deep choices are available in 15", 19", and 24" widths, including outdoor refrigerators, refrigerator drawers, wine cellars, and more.
Less than 18" deep
Unique 17.75" shallow depth is ideal for wet bars, island kitchens, and other undercounter areas with limited footprint space
15" wide beverage center
1.8 cu.ft. interior for residential or commercial cold storage
ADA compliant
Sized at 32" high for use under lower ADA compliant counters
Adjustable height
Leveling legs can be extended up to 2", with a slide-out kickplate that allows you to raise the overall height from 32" up to 34" if used under more standard sized cabinets
Built-in capable
Front-breathing design lets you make the best use of space by installing your appliance under the counter
Double pane tempered glass door
Elegant design offers a clear but protected view of your interior

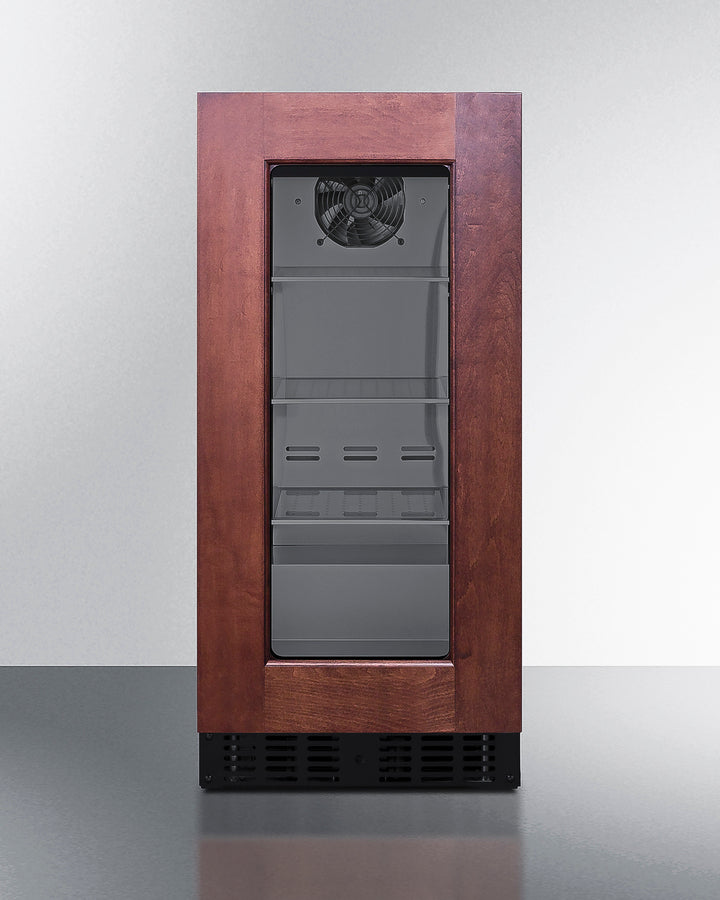

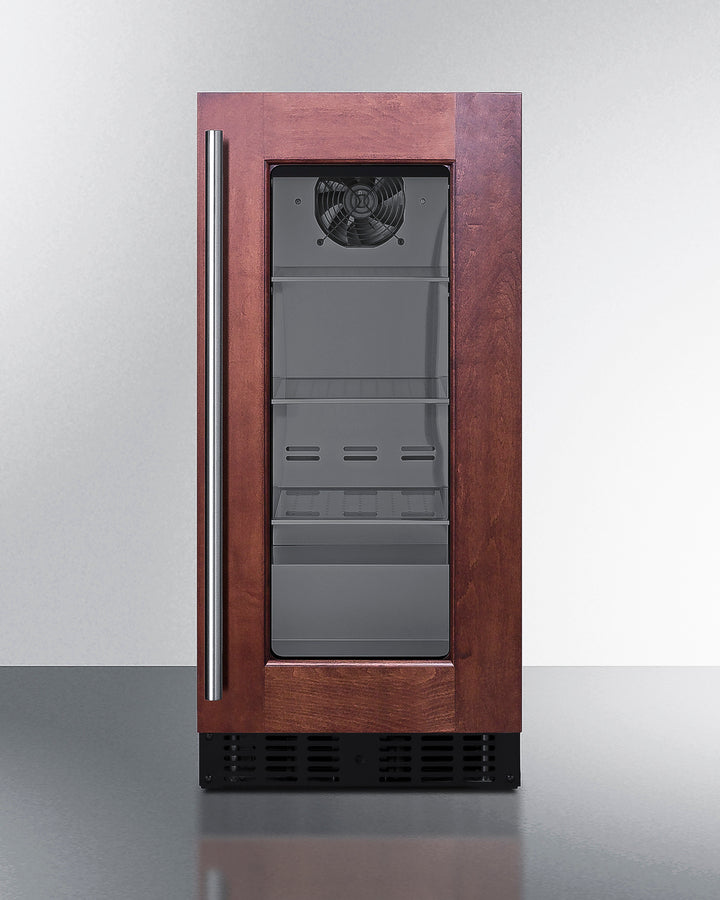

Panel-ready door
European style articulating door hinge and bracket kit allow easy installation of custom door trim panels to match adjacent cabinetry
Seamless stainless steel door trim
Glass is framed by with a flush one-piece stainless steel trim for an elevated look
Stainless steel interior
Walls and floor are constructed from stainless steel for added strength and easy cleanup
Factory installed lock
Keyed lock for a secure interior (2 keys included)
Digital thermostat
Electronic controls located inside the unit for precise temperature management, with a readout viewable in Celsius or Fahrenheit at the touch of a button

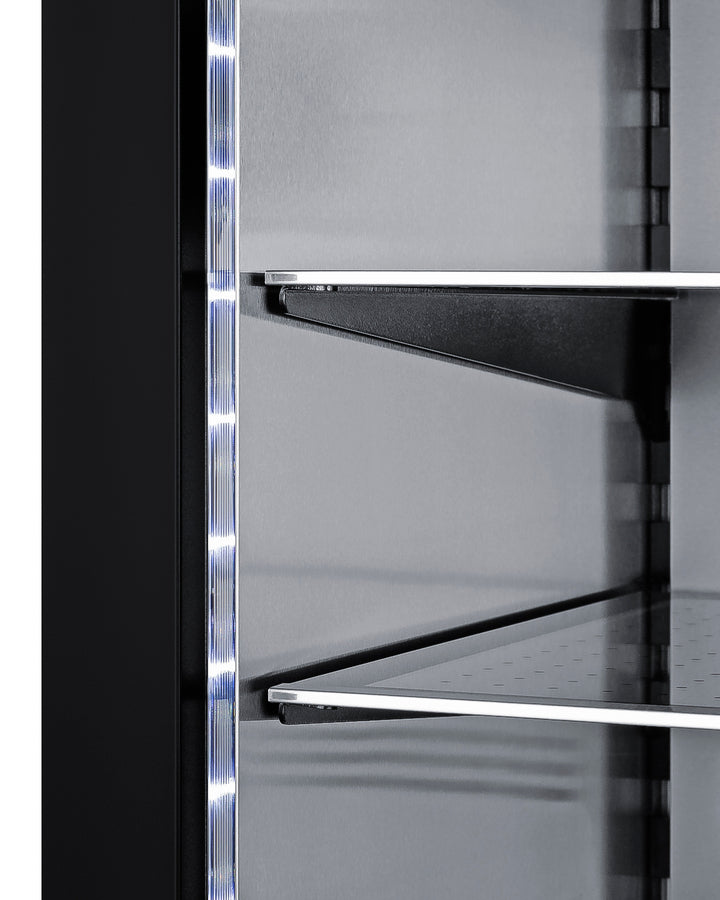

Dimmable LED lighting
Efficient and attractive presentation with white LED lighting strips located on each side of the cabinet that can be adjusted between three levels of brightness
Frost-free operation
No-frost operation for minimum user maintenance
Internal fan
Fan-forced cooling ensures fast temperature recovery and that the unit is evenly cooled from top to bottom

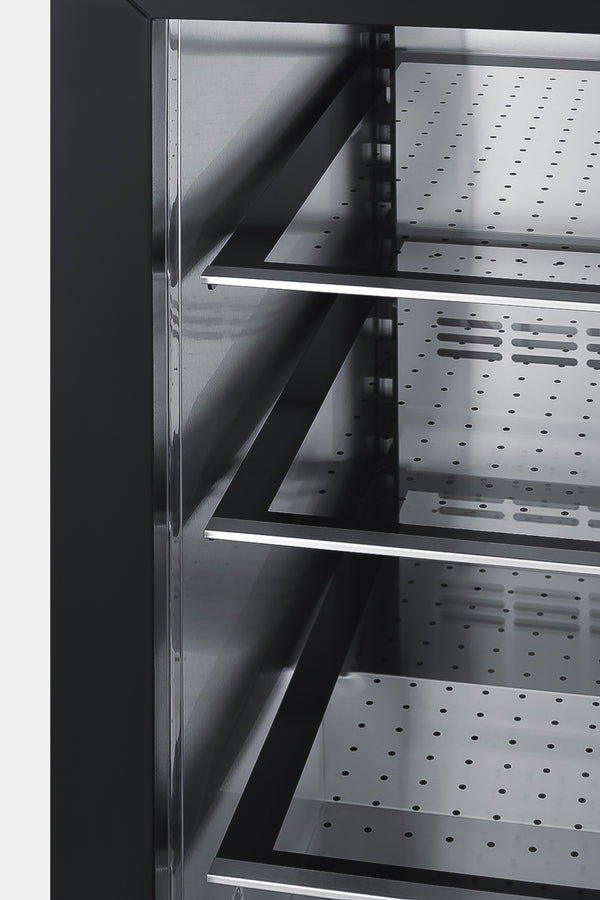

Cantilevered shelving
Adjustable glass shelves with stainless steel clips allow you to adjust the shelf height for the best fit
Open door alarm
Alarm sounds if the door is left open for more than 60 seconds
High temperature alarm
Audible alarm sounds if the interior temperature rises out of set range
Sabbath mode setting
Optional setting lets you disable the lighting and alarm for up to 48 hours during periods of observance
Temperature Memory Function
Unit will retain its last settings when power is restored in the event of power loss
Right angle plug
Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
Sealed back
Space-saving design with no exposed coils that offers easier cleanability

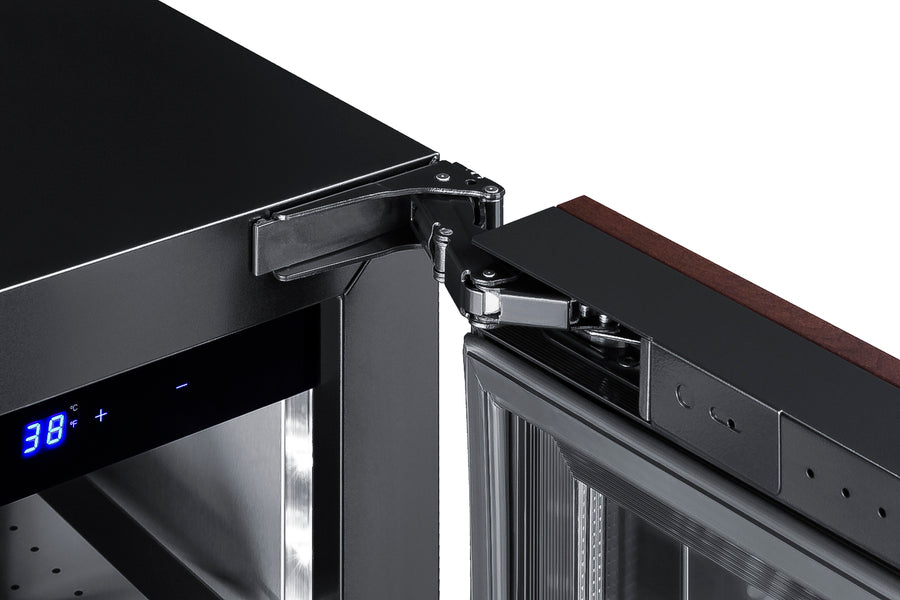

Fully articulating European style hinge
Smoother opening and a better fit with an integrated European hinge
Reversible door
User-reversible door swing on the refrigerator for added flexibility
Fully finished black cabinet
Allows the unit to be used freestanding
Commercially approved
ETL-S listed to NSF-7 Standards for use in commercial establishments
100% CFC Free
Environmentally friendly design with no ozone-damaging chemicals
CARB Compliant
Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

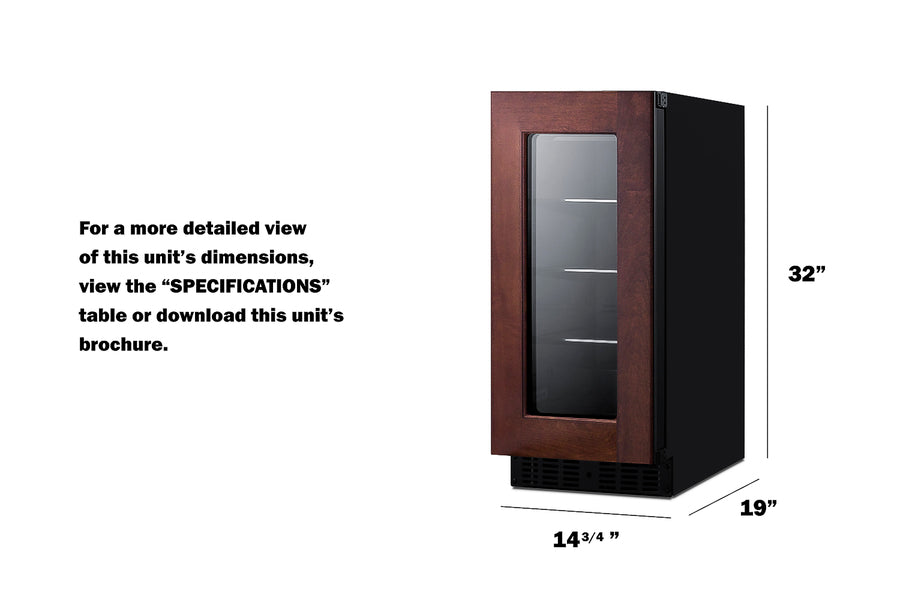

Overview
Height of Cabinet 32.0" (81 cm)
Width 14.75" (37 cm)
Depth 17.75" (45 cm)
Depth with door at 90° 31.0" (79 cm)
Capacity 1.8 cu.ft. (51 L)
Defrost Type Frost-Free
Door Glass/Panel-Ready Frame
Cabinet Black
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Sanitation ETL-S
Energy Usage/Year 270.0kWh/year
Amps 1.0
Voltage/Frequency 115 V AC/60 Hz
Weight 68.0 lbs. (31 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101077147
Refrigerator Features
Sabbath Mode Yes
Door Swing RHD
Reversible Yes
Height Adjustable Yes
Shelf Type Glass
Shelf Qty 3
Adjustable Shelves Yes
Thermostat Type Digital
Fan Type Interior and Exterior
Refrigerant Type R600a
Refrigerant Amount 0.78oz.
High Side PSI 270.0
Low Side PSI 105.0
Level Legs Qty 4
Interior Light Yes
Temperature Range 36 to 43ºF
Sound Level 33.4 dB
Dimensions
Interior Height 22.5" (57 cm)
Interior Width 10.75" (27 cm)
Interior Depth 12.38" (31 cm)
Compressor Step Height 3.75" (10 cm)
Compressor Step Width 10.75" (27 cm)
Compressor Step Depth 5.5" (14 cm)
Exterior
LHD - Left hand door swing
Door
T4 Door Tint T3 Door Tint
T2 Door Tint T1S Door Tint
T1 Door Tint
